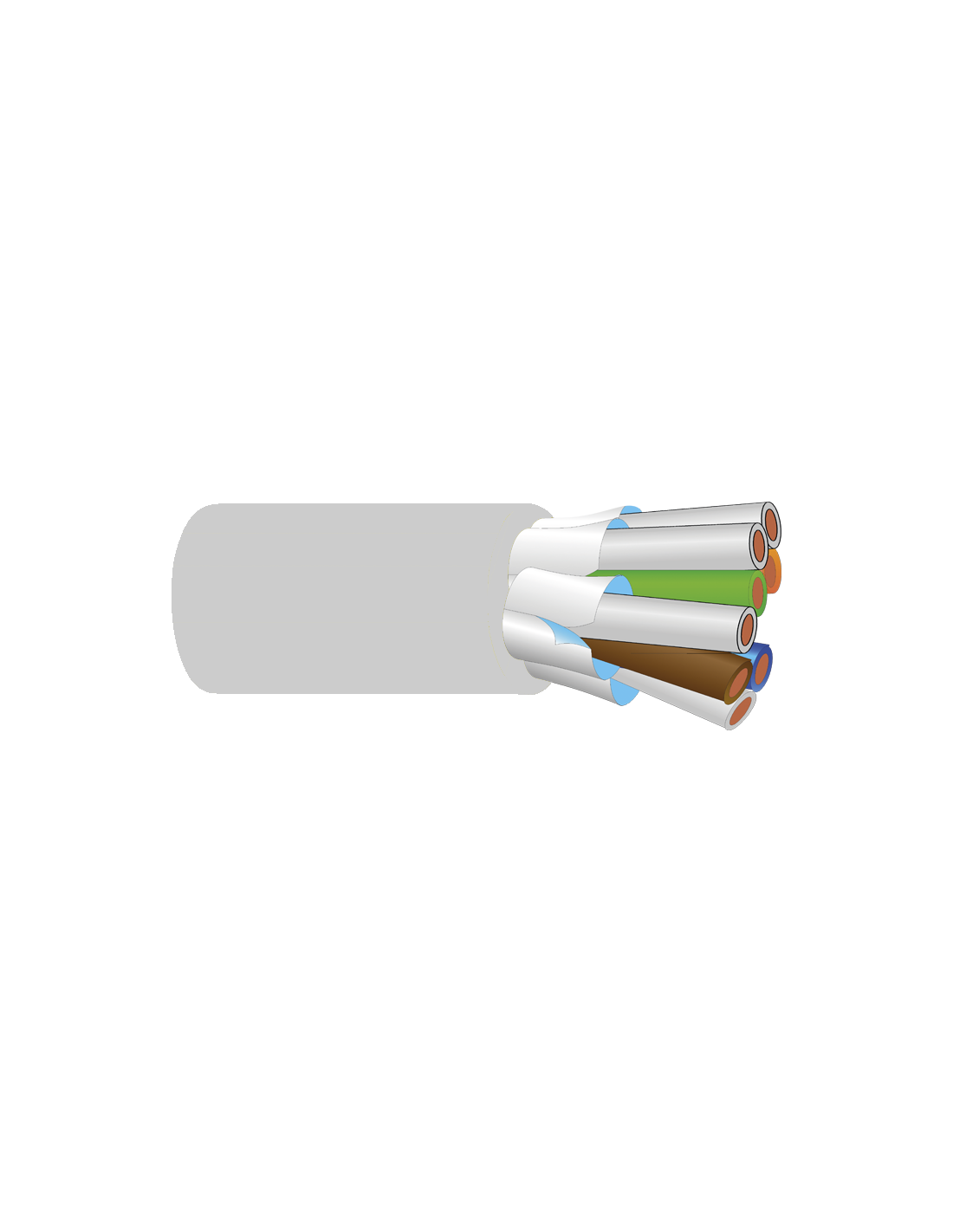

Data Cable NEO-CAT.6 Percon NEO-CAT6007
Flexible 4-pair Cat 6 U/FTP data cable with oxygen-free copper conductors, for networks, IT equipment and professional A/V converters. PoE/PoE+ and HDBaseT compatible.
The Percon NEO-CAT6007, from the NEO Cat 6 series, is a flexible U/FTP data cable for linking computers, IT devices and professional audiovisual converters over Gigabit Ethernet (1000Base-T) networks. It supports PoE and PoE+ power (IEEE 802.3at), audio and video over IP, and HDBaseT.
Its four pairs of stranded 27 AWG oxygen-free copper (Cu OFC) conductors with PEX insulation provide the flexibility needed for frequent handling, while foil shielding over the pairs (U/FTP construction) protects them against interference and crosstalk.
With a nominal outer diameter of 7 mm and a weight of 38 kg/km, it is a thin, lightweight cable, ideal for OB vans, events, rental and live productions. It complies with the ISO/IEC 11801 and EN 50173-1 structured cabling standards.
Key features
- Flexible Cat 6 U/FTP data cable, 4 pairs
- Stranded oxygen-free copper (Cu OFC) conductors, 27 AWG
- PEX insulation
- Foil shielding over the pairs (U/FTP)
- Gigabit Ethernet (1000Base-T), PoE/PoE+ (IEEE 802.3at) and HDBaseT
- Compatible with ISO/IEC 11801 and EN 50173-1
- Designed for mobile use
- Nominal outer diameter: 7 mm · Weight: 38 kg/km
