Data Cable NEO-CAT.6 Percon NEO-CAT6008 PTC FCA
Percon
Data Cable NEO-CAT.6 Percon NEO-CAT6008 PTC FCA

Data Cable NEO-CAT.6 Percon NEO-CAT6008 PTC FCA

NEO-CAT6008 PTC FCA

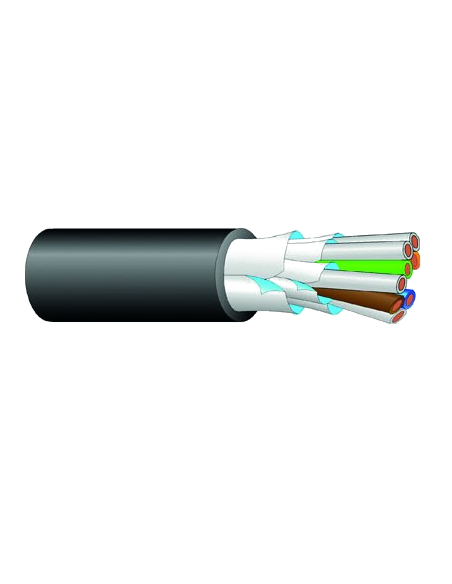

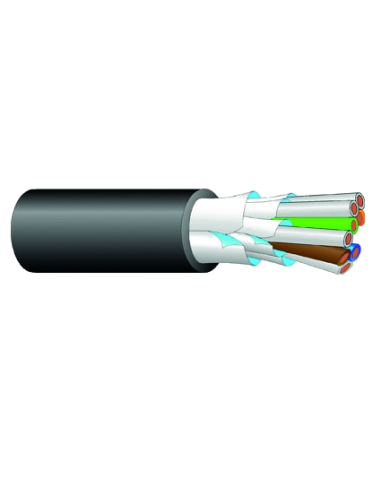

Super-flexible 4-pair Cat 6 F/FTP data cable with oxygen-free copper conductors, double shielding and Fca classification, for networks, IT equipment and professional A/V converters. PoE/PoE+ and HDBaseT compatible.

The Percon NEO-CAT6008 PTC FCA, from the NEO Cat 6 series, is a super-flexible F/FTP data cable for linking computers, IT devices and professional audiovisual converters over Gigabit Ethernet (1000Base-T) networks. It supports PoE and PoE+ power (IEEE 802.3at), audio and video over IP, and HDBaseT.

Its four pairs of stranded 27 AWG oxygen-free copper (Cu OFC) conductors with PEX insulation provide exceptional flexibility for constant handling. Its double shielding, with Al-PET foil over the pairs plus an overall Al-PET foil (F/FTP construction), provides highly effective protection against interference and crosstalk.

With a nominal outer diameter of 7.5 mm, a weight of 45 kg/km, a black PTC jacket and Fca reaction-to-fire classification, it is ideal for OB vans, events, rental and live productions. It complies with ISO/IEC 11801 and EN 50173-1.

Key features

  • Super-flexible Cat 6 F/FTP data cable, 4 pairs
  • Stranded oxygen-free copper (Cu OFC) conductors, 27 AWG
  • PEX insulation
  • Double shield: Al-PET foil over the pairs + overall Al-PET foil
  • 1000Base-T, PoE/PoE+ (IEEE 802.3at) and HDBaseT
  • Standards: ISO/IEC 11801, EN 50173-1
  • Designed for mobile use
  • Black PTC jacket
  • Fca reaction-to-fire classification
  • Nominal outer diameter: 7.5 mm · Weight: 45 kg/km

Product Details

Nº conductors
4 x 2
Conductor
Cu OFC
AWG
27
Stranding
7/35
Section (mm2)
0.11
Insulation
PEX
Shield
1 Al - Pet foil 2 pairs + general Al - Pet
Nominal Size
7.5
Weight (Kg)
45
Colour
Black
Use
mobile installation
Composition
F/FTP SUPERFLEX
NEO-CAT6008PTC/FCA
