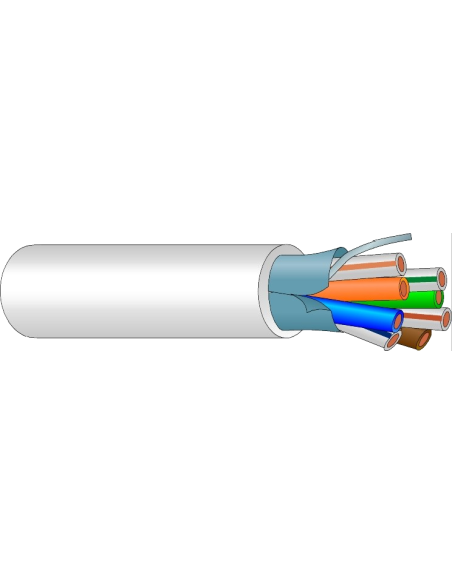

Data Cable NEO-CAT.6 Percon NEO-CAT6001 ECA
4-pair shielded Cat 6 data cable with 23 AWG oxygen-free copper conductors, especially suited to installations with electrical interference. Euroclass Eca.
The Percon NEO-CAT6001 ECA, from the NEO Cat 6 series, is a data cable for linking computers and IT devices in local area networks (LAN), ready for 10Base-T Ethernet, Fast Ethernet (100Base-T) and Gigabit Ethernet (1000Base-T).
Its four pairs of 23 AWG oxygen-free copper (Cu OFC) conductors with PEX insulation ensure stable data transmission. Its overall Al-PET shield with drain wire protects it against interference, making it especially suitable for installations with electrical noise: technical rooms, industrial environments, studios or spaces with a lot of power cabling.
With a nominal outer diameter of 7.1 mm, a weight of 47 kg/km, a grey PTC jacket and Euroclass Eca, it complies with the ISO/IEC 11801, EN 50173-1, EN 50288-5-1 and IEC 61156-6 structured cabling standards.
Key features
- Shielded Cat 6 data cable, 4 pairs
- Oxygen-free copper (Cu OFC) conductors, 23 AWG
- PEX insulation
- Overall Al-PET shield + drain wire
- Especially suited to environments with electrical interference
- 10Base-T, 100Base-T and 1000Base-T
- Standards: ISO/IEC 11801, EN 50173-1, EN 50288-5-1, IEC 61156-6
- Grey PTC jacket
- Euroclass Eca
- Nominal outer diameter: 7.1 mm · Weight: 47 kg/km
