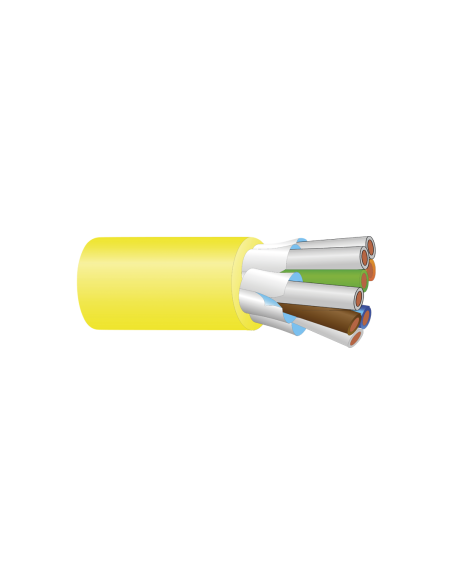

Data Cable NEO-CAT.6 Percon NEO-CAT6007
Percon
Data Cable NEO-CAT.6 Percon NEO-CAT6007

Data Cable NEO-CAT.6 Percon NEO-CAT6007

NEO-CAT6007HF/Y/ECA

Flexible 4-pair Cat 6 U/FTP data cable with oxygen-free copper conductors, for networks, IT equipment and professional A/V converters. PoE/PoE+ and HDBaseT compatible.

The Percon NEO-CAT6007, from the NEO Cat 6 series, is a flexible U/FTP data cable for linking computers, IT devices and professional audiovisual converters over Gigabit Ethernet (1000Base-T) networks. It supports PoE and PoE+ power (IEEE 802.3at), audio and video over IP, and HDBaseT.

Its four pairs of stranded 27 AWG oxygen-free copper (Cu OFC) conductors with PEX insulation provide the flexibility needed for frequent handling, while foil shielding over the pairs (U/FTP construction) protects them against interference and crosstalk.

With a nominal outer diameter of 7 mm and a weight of 38 kg/km, it is a thin, lightweight cable, ideal for OB vans, events, rental and live productions. It complies with the ISO/IEC 11801 and EN 50173-1 structured cabling standards.

Key features

  • Flexible Cat 6 U/FTP data cable, 4 pairs
  • Stranded oxygen-free copper (Cu OFC) conductors, 27 AWG
  • PEX insulation
  • Foil shielding over the pairs (U/FTP)
  • Gigabit Ethernet (1000Base-T), PoE/PoE+ (IEEE 802.3at) and HDBaseT
  • Compatible with ISO/IEC 11801 and EN 50173-1
  • Designed for mobile use
  • Nominal outer diameter: 7 mm · Weight: 38 kg/km
COLOUR
  • Gray
  • Red
  • Black
  • Yellow
TYPE
NORMATIVA
CUBIERTA

Product Details

Nº conductors
4 x 2
Conductor
Cu OFC
AWG
27
Stranding
7/35
Section (mm2)
0.11
Insulation
PEX
Shield
1 Foil 2 Pairs | 1 Foil 2 Pairs
Nominal Size
7
Weight (Kg)
38
Use
mobile installation
Composition
U/FTP FLEXIBLE
NEO-CAT6007HF/Y/ECA
