Multicore Digital Cable Percon TVL 0240 HF FCA

Multicore Digital Cable Percon TVL 0240 HF FCA

TVL 0240 HF FCA

Multicore cable combining 2 balanced digital audio lines and 1.5 mm² power conductors, for remote broadcast camera connections and self-powered audio systems. Class Fca, for mobile use.

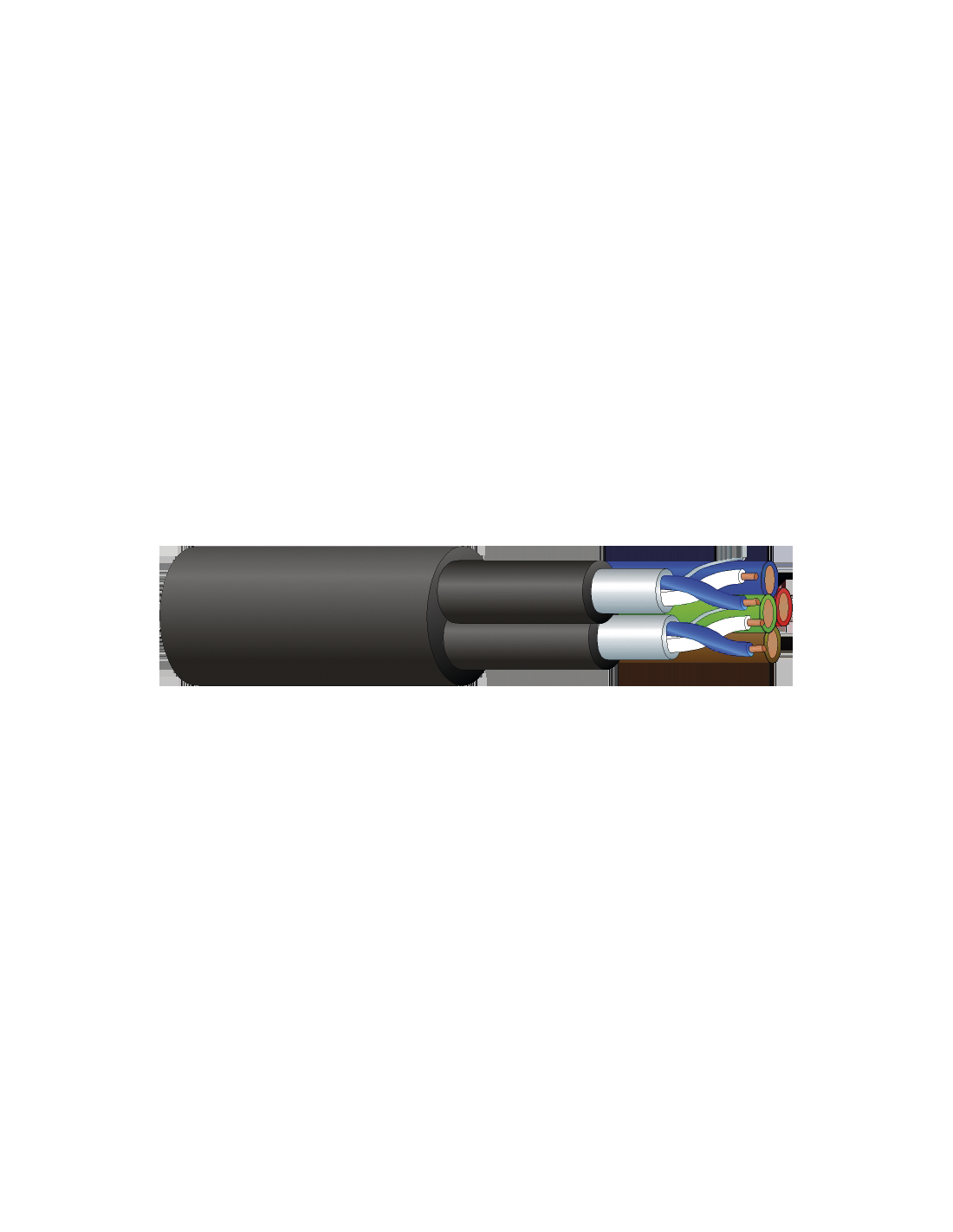

The Percon TVL 0240 HF FCA is a multicore cable designed for remote broadcast camera connections and for self-powered audio systems, both mono and balanced stereo. It carries digital audio and equipment power in a single run.

It includes two balanced digital audio lines, with 24 AWG tinned copper (CuSn) conductors, PEX insulation and an Al-PET plus copper shield that protects the signal against interference; and 1.5 mm² (16 AWG) tinned copper power conductors with FRLSZH insulation.

With a nominal outer diameter of 12.5 mm and a weight of 230 kg/km, it is available with a black FRLS or FRLSZH jacket and has Fca reaction-to-fire classification. Its stranded conductors make it suitable for mobile installations.

Key features

  • Multicore cable: 2 balanced digital audio lines + 1.5 mm² power
  • For remote broadcast camera connections and self-powered audio systems (mono and stereo)
  • Audio: CuSn, 24 AWG, PEX insulation, Al-PET + Cu shield
  • Power: CuSn, 1.5 mm² (16 AWG), FRLSZH insulation
  • Designed for mobile use
  • Black FRLS or FRLSZH jacket
  • Fca reaction-to-fire classification
  • Nominal outer diameter: 12.5 mm · Weight: 230 kg/km

Product Details

Nº conductors
2 | 4
Conductor
CuSn - PEX
AWG
24-16
Stranding
80/32 | 7/32
Insulation
FRLSZH | PEX
Shield
- | AL-Pet + Cu
Nominal Size
12.5
Weight (Kg)
230
Colour
Black
Use
mobile installation
Jacket
FRLS / FRLSZH
Composition
2 BALANCED AUDIO DIGITAL CABLE + 4 POWER CABLE 1,5 MM2
0493HF/FCA
