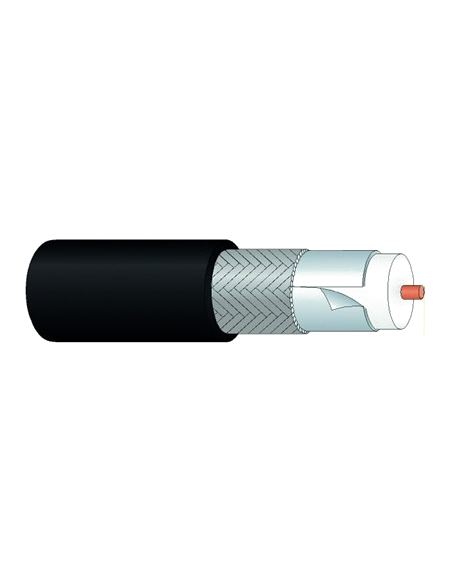

RF Radiofrequency Cable Percon RF 240
Percon
RF Radiofrequency Cable Percon RF 240

RF Radiofrequency Cable Percon RF 240

RF 240

Very low-loss 50 Ω radio frequency coaxial cable, ideal for trunk installations. For fixed installation.

The Percon RF 240 is a 50 Ω radio frequency coaxial cable designed for fixed installation. It offers very low loss, making it ideal for trunk runs.

Its 1.58 mm² (15 AWG) solid copper-clad aluminium (CC Al) conductor with foamed high-density polyethylene (FHDPE) insulation ensures efficient signal transmission with minimal attenuation. Its double shield, made of an Al-PET tape and a tinned copper braid, provides high protection against interference.

With a nominal outer diameter of 6.1 mm, a weight of 30 kg/km and a black PTC jacket, it is a compact, reliable choice for RF trunk lines in permanent installations.

Key features

  • 50 Ω radio frequency coaxial
  • Very low loss, ideal for trunk lines
  • Solid copper-clad aluminium (CC Al) conductor, 1.58 mm² (15 AWG)
  • FHDPE insulation (foamed high-density polyethylene)
  • Double shield: Al-PET tape + tinned copper braid
  • Designed for fixed installation
  • Black PTC jacket
  • Nominal outer diameter: 6.1 mm · Weight: 30 kg/km

Product Details

Nº conductors
1
Conductor
CC Al
AWG
15
Stranding
Solid
Section (mm2)
1.58
Insulation
FHDPE
Shield
Al-Pet+CuSn
Nominal Size
6.1
Weight (Kg)
30
Colour
Black
Use
fixed installation
Jacket
PTC
0413RF240
