RF Radiofrequency Cable Percon RF 600
Percon
RF Radiofrequency Cable Percon RF 600

RF Radiofrequency Cable Percon RF 600

RF 600

Very low-loss 50 Ω radio frequency coaxial cable, ideal for trunk installations. For fixed installation.

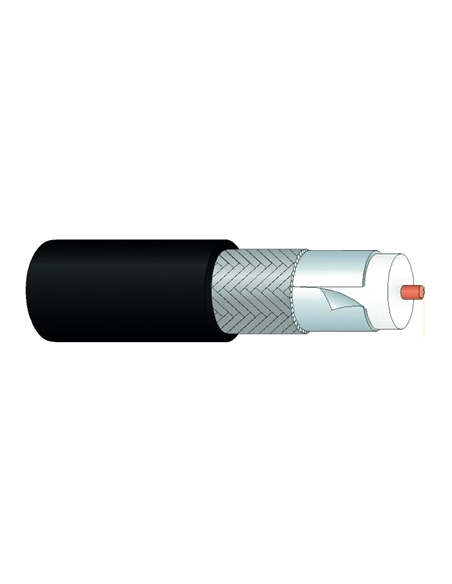

The Percon RF 600 is a 50 Ω radio frequency coaxial cable designed for fixed installation. It offers very low loss, making it ideal for trunk runs and long distances.

Its 15.69 mm² (5 AWG) solid copper-clad aluminium (CC Al) conductor with foamed high-density polyethylene (FHDPE) insulation ensures efficient signal transmission with minimal attenuation. Its shield, made of an Al-PET tape and an aluminium shield, provides high protection against interference.

With a nominal outer diameter of 14.99 mm, a weight of 200 kg/km and a black polyethylene (PE) jacket, it is a robust solution for RF trunk lines in permanent installations.

Key features

  • 50 Ω radio frequency coaxial
  • Very low loss, ideal for trunk lines
  • Solid copper-clad aluminium (CC Al) conductor, 15.69 mm² (5 AWG)
  • FHDPE insulation (foamed high-density polyethylene)
  • Al-PET + aluminium shield
  • Designed for fixed installation
  • Black polyethylene (PE) jacket
  • Nominal outer diameter: 14.99 mm · Weight: 200 kg/km

Product Details

Nº conductors
1
Conductor
CC Al
AWG
5
Stranding
Solid
Section (mm2)
15.69
Insulation
FHDPE
Shield
Al-Pet + Al
Nominal Size
14.99
Weight (Kg)
200
Colour
Black
Use
fixed installation
Jacket
PE
0413RF600
