Shielded, low-capacitance multicore cable for DMX lighting control (3 and 5-pin) and for the Meyer Sound Stella series, with a 120 Ω data pair and power conductors. Available with PTC, NBR or FRLSZH jacket.

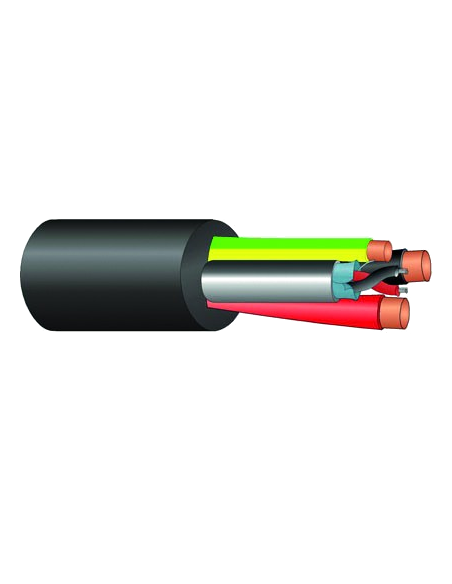

The Percon DMX 514 is a low-capacitance multicore cable designed for lighting control via DMX protocol, with 3 and 5-pin connectors, and for the Meyer Sound Stella series, compatible with 5-pin EN3 connectors.
It includes one 120 Ω balanced data pair, with 7-strand 0.22 mm² (24 AWG) tinned oxygen-free copper (CuSn OFC) conductors, PEX insulation and an Al-PET shield with drain wire that protects the DMX signal against interference; two stranded 2 mm² (14 AWG) copper power conductors; and one additional stranded 1 mm² (18 AWG) copper conductor, both with PTC insulation. Control data and power reach the equipment in a single run.
With a nominal outer diameter of 9.2 mm and a weight of 87.5 kg/km, it is available with a black PTC, NBR or FRLSZH jacket (flame retardant, low smoke and zero halogen). It is a robust solution for stages, tours, events and lighting installations.
Key features
- Cable for DMX lighting control (3 and 5-pin) and Meyer Sound Stella series (5-pin EN3 connectors)
- 120 Ω balanced data pair: 7-strand CuSn OFC, 0.22 mm² (24 AWG), PEX insulation, Al-PET shield + drain wire
- Power: 2 stranded Cu conductors of 2 mm² (14 AWG) + 1 conductor of 1 mm² (18 AWG), PTC insulation
- Low capacitance
- Designed for mobile use
- Black PTC, NBR or FRLSZH jacket
- Nominal outer diameter: 9.2 mm · Weight: 87.5 kg/km
