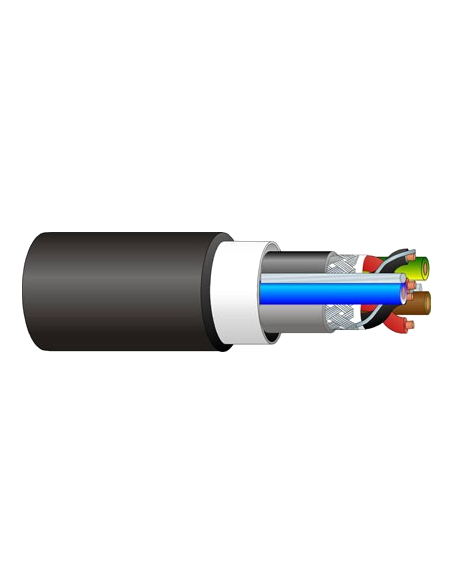

Multicore Digital Cable Percon TVL 0230 FCA

Multicore Digital Cable Percon TVL 0230 FCA

TVL 0230 FCA

Multicore cable combining 2 AK 2111 AL-type digital audio cables and 3 × 2.5 mm² power conductors, for remote broadcast camera connections and self-powered audio systems. Class Fca, for mobile use.

The Percon TVL 0230 FCA is a multicore cable designed for remote broadcast camera connections and for self-powered audio systems, both mono and balanced stereo. It carries digital audio and equipment power in a single run.

It includes two AK 2111 AL-type balanced digital audio cables, with 7-strand 0.22 mm² (24 AWG) tinned copper (CuSn) conductors, PEX insulation and an Al-PET plus copper shield; and three stranded 2.5 mm² (14 AWG) copper power conductors with FRLSZH insulation.

With a nominal outer diameter of 13.5 mm, a weight of 216 kg/km, a black FRLS jacket — flame retardant and low smoke — and Fca reaction-to-fire classification, it is a robust solution for OB vans, events and live productions.

Key features

  • Multicore cable: 2 digital audio (AK 2111 AL type) + 3 power conductors
  • For remote broadcast camera connections and self-powered audio systems (mono and stereo)
  • Audio: 7-strand CuSn, 0.22 mm² (24 AWG), PEX insulation, Al-PET + Cu shield
  • Power: stranded Cu, 2.5 mm² (14 AWG), FRLSZH insulation
  • Designed for mobile use
  • Black FRLS jacket (flame retardant, low smoke)
  • Fca reaction-to-fire classification
  • Nominal outer diameter: 13.5 mm · Weight: 216 kg/km

Product Details

Nº conductors
3 | 2
Conductor
Cu | CuSn
AWG
14 | 24
Stranding
80/32 | 7/32
Section (mm2)
2.5 | 0.22
Insulation
FRLSZH | PEX
Shield
- | AL-Pet + Cu
Nominal Size
13.5
Weight (Kg)
216
Colour
Black
Use
mobile installation
Jacket
FRLS
Composition
Power cables | AK 2111 AL
0461/FCA
