Data Cable Percon DMX 505 PTC FCA
Percon

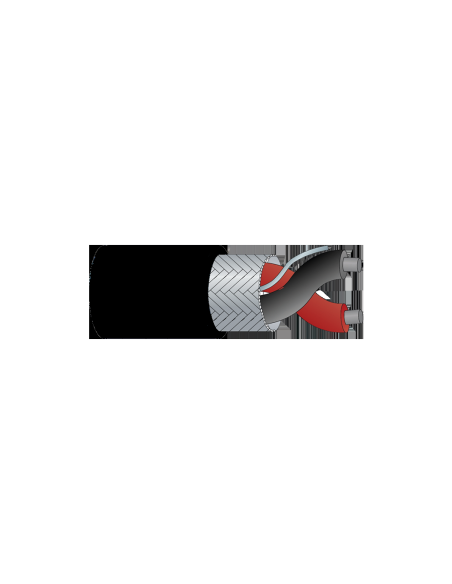

Data Cable Percon DMX 505 PTC FCA

Data Cable Percon DMX 505 PTC FCA

DMX 505 PTC FCA

Shielded, low-capacitance cable with one 120 Ω data pair, for DMX lighting control (3 and 5-pin) and for the Meyer Sound Stella series. PTC or NBR jacket, for mobile use.

The Percon DMX 505 is a low-capacitance cable designed for lighting control via DMX protocol, with 3 and 5-pin connectors, and for the Meyer Sound Stella series, compatible with 5-pin EN3 connectors.

It includes one 120 Ω balanced data pair, with stranded tinned copper (CuSn) conductors and PE insulation, and an Al-PET shield with drain wire that protects the DMX signal against interference.

With a nominal outer diameter of 6 mm and a weight of 50 kg/km, it is available with a PTC or NBR jacket, making it a compact, easy-to-handle cable for stages, events, tours and lighting installations.

Key features

  • Cable for DMX lighting control (3 and 5-pin) and Meyer Sound Stella series (5-pin EN3 connectors)
  • 1 × 120 Ω balanced data pair
  • Stranded tinned copper (CuSn) conductors, PE insulation
  • Al-PET shield + drain wire
  • Low capacitance
  • Designed for mobile use
  • PTC or NBR jacket
  • Nominal outer diameter: 6 mm · Weight: 50 kg/km

Product Details

Nº conductors
1
Conductor
Cu Sn
AWG
20
Stranding
11/32
Section (mm2)
0.5
Insulation
PE
Shield
Al-PET +Drain Wire
Nominal Size
6.0
Weight (Kg)
50
Use
mobile installation
More info
120 Ohms
Jacket
PTC NBR
Composition
Digital Balanced Pair
0658PTC/FCA
