Audio Cable Percon AK 242 MIC PTC FCA
Percon
Audio Cable Percon AK 242 MIC PTC FCA

Audio Cable Percon AK 242 MIC PTC FCA

AK 242 MIC PTC FCA

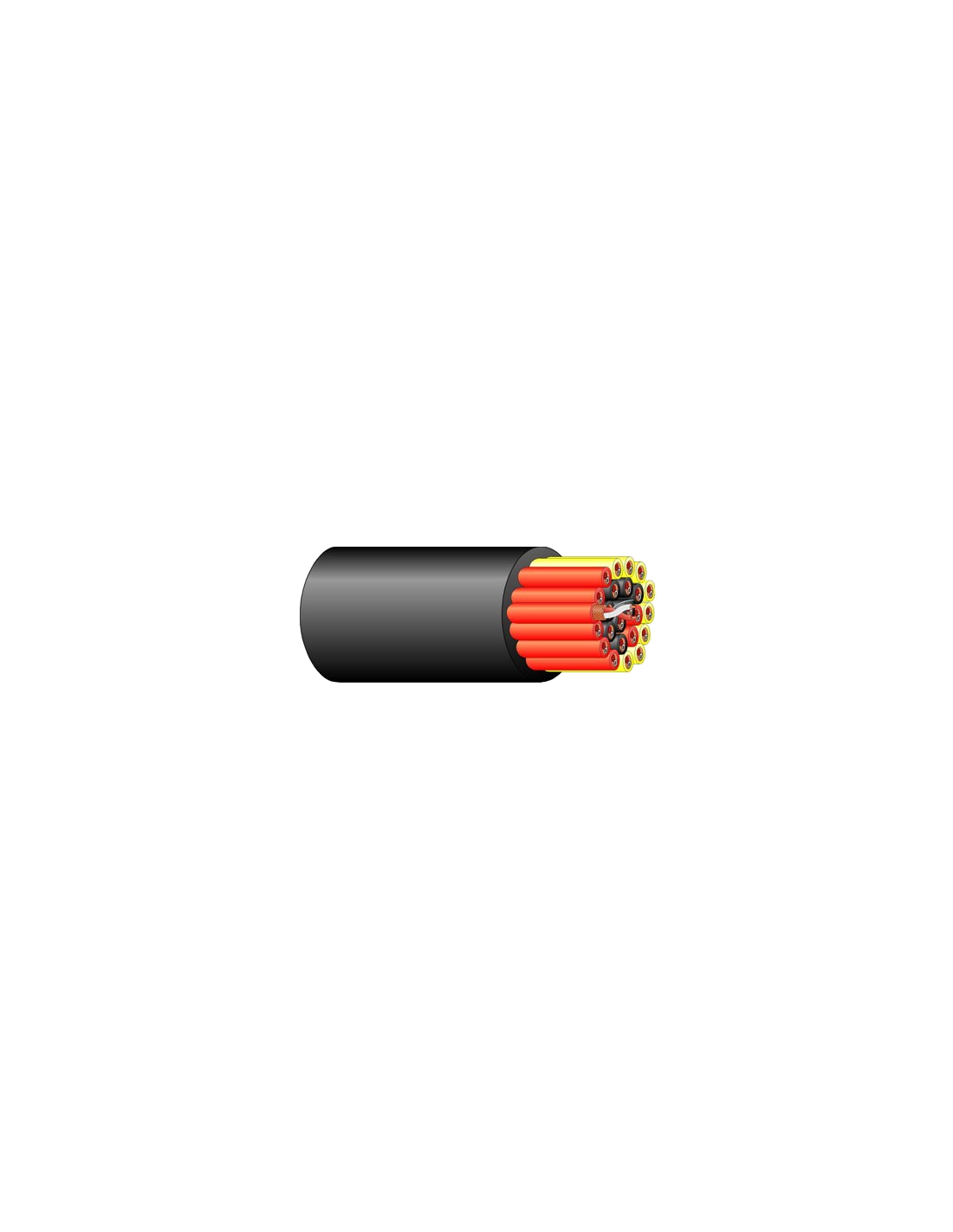

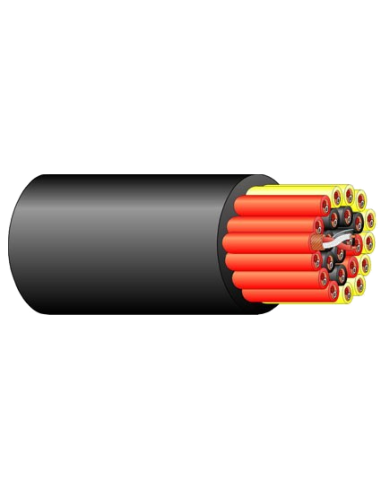

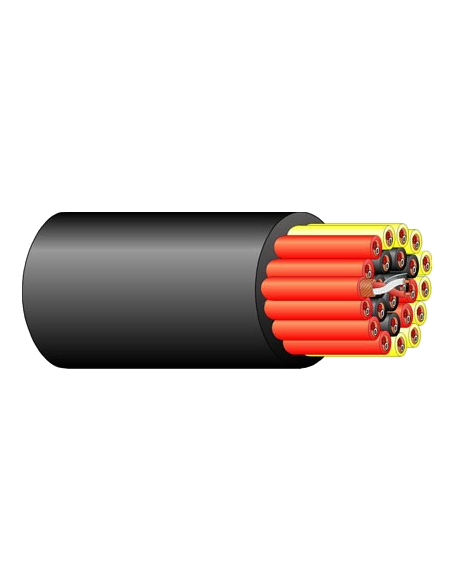

The Percon AK 242 MIC PTC FCA audio cable carries 24 balanced microphone signals in a single cable. It is designed for large mobile snakes in OB vans, outside broadcast production, concerts, live events and temporary set-ups, where the cable is constantly laid out, coiled and moved.

It is designed to deliver an excellent signal-to-noise ratio (SNR), which is essential for microphone signals, as they are very weak and easily affected by noise. Its oxygen-free copper (Cu OFC) conductors provide excellent, long-lasting conductivity.

The polished copper spiral shield protects the signal from interference while keeping the cable highly flexible, easy to coil and resistant to heavy use. The tinned copper drain wire makes soldering easier and offers better corrosion resistance. It also meets Euroclass Fca according to EN 50575 (CPR), so it can also be used in permanent building installations covered by this regulation, according to the requirements of each project.

Applications:

  • Large microphone snakes between stage and control
  • OB vans and outside broadcast production
  • Concerts, festivals and live events
  • Temporary set-ups at trade fairs, sets and auditoriums

Product Details

Nº conductors
24 Pairs
Conductor
Cu OFC
AWG
24
Stranding
25/38
Section (mm2)
0.20
Insulation
PEX
Shield
Cu + Drain Wire
Nominal Size
20.7
Weight (Kg)
452
Colour
Black
Use
mobile installation
Jacket
PTC / FRLSZH
0277PTC/FCA
