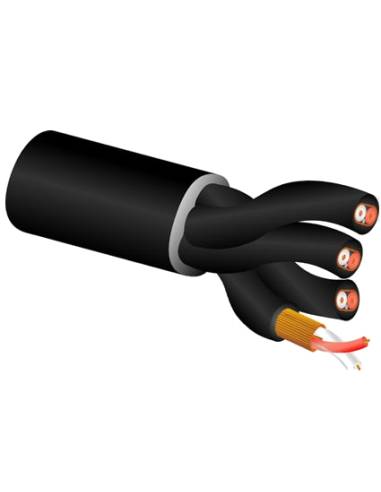

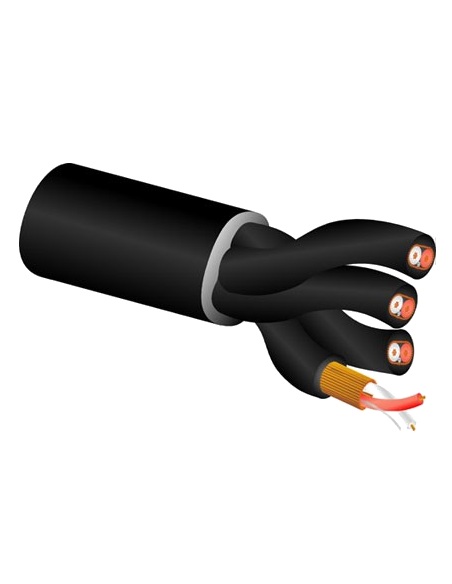

Audio Cable Percon AK 42 MIC PTC FCA
Percon
Audio Cable Percon AK 42 MIC PTC FCA

Audio Cable Percon AK 42 MIC PTC FCA

AK 42 MIC PTC FCA

Balanced, shielded analogue audio cable with 4 pairs and oxygen-free copper (OFC) conductors. Highly flexible and specially designed for mobile microphone applications, with an excellent signal-to-noise ratio.

The Percon AK 42 MIC PTC FCA is a balanced analogue audio multipair cable designed for mobile microphone applications, where flexibility and signal quality are essential.

Its 0.20 mm² (24 AWG) oxygen-free copper (OFC) conductors with PEX insulation ensure clean, stable transmission. Each pair is protected by a polished copper spiral shield with a tinned copper drain wire, providing high immunity to interference and an excellent signal-to-noise ratio (SNR), even in demanding environments. With a nominal outer diameter of 9.4 mm and a weight of 120 kg/km, its four pairs carry more signals in a single run without sacrificing ease of handling.

Its black PTC | FRLSZH jacket — flame retardant, low smoke and zero halogen — and highly flexible construction make it ideal for frequent rigging and de-rigging: live productions, OB vans, events and stages.

Key features

  • Balanced analogue audio, 4 shielded pairs
  • Oxygen-free copper (OFC) conductors
  • Polished copper spiral shield + tinned copper drain wire
  • Excellent signal-to-noise ratio (SNR)
  • Highly flexible, designed for mobile use
  • Black PTC | FRLSZH jacket (flame retardant, low smoke, zero halogen)
  • Nominal outer diameter: 9.4 mm · Weight: 120 kg/km

Product Details

Nº conductors
4 Pairs
Conductor
Cu OFC
AWG
24
Stranding
25/38
Section (mm2)
0.20
Insulation
PEX
Shield
Cu + Drain Wire
Nominal Size
9.4
Weight (Kg)
120
Colour
Black
Use
mobile installation
Jacket
PTC / FRLSZH
0271PTC/FCA
