Audio Cable Percon AK 122 MIC PTC FCA
Percon
Audio Cable Percon AK 122 MIC PTC FCA

Audio Cable Percon AK 122 MIC PTC FCA

AK 122 MIC PTC FCA

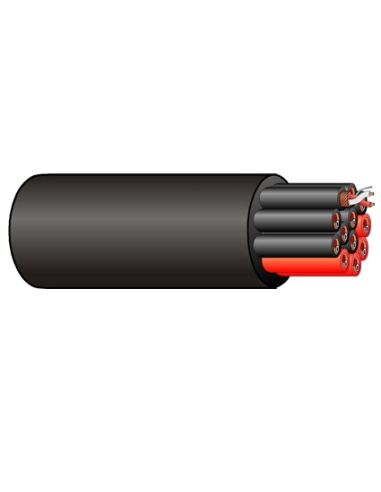

The Percon AK 122 MIC PTC FCA audio cable carries 12 balanced microphone signals in a single cable. It is designed for mobile snakes in OB vans, outside broadcast production, concerts, live events and temporary set-ups, including theatres, auditoriums and public venues where fire-safe cables are required.

It is designed to deliver an excellent signal-to-noise ratio (SNR), which is essential for microphone signals, as they are very weak and easily affected by noise. Its 0.20 mm² (AWG 24) oxygen-free copper (Cu OFC) conductors, with cross-linked polyethylene (PEX) insulation, provide excellent, long-lasting conductivity.

The polished copper spiral shield protects the signal from interference and keeps the cable highly flexible, easy to coil and resistant to heavy use. The tinned copper drain wire makes soldering easier and offers better corrosion resistance.

Its black FRLSZH jacket is flame retardant, low smoke and halogen-free, so it does not release corrosive or toxic gases in the event of fire. It also meets Euroclass Fca according to EN 50575 (CPR). With an outer diameter of 14.6 mm, it is an easy-to-handle snake for its channel count.

Applications:

  • Microphone snakes between stage and control
  • OB vans and outside broadcast production
  • Concerts and events in theatres, auditoriums and public venues
  • Temporary set-ups at trade fairs, sets and event venues

Product Details

Nº conductors
12 Pairs
Conductor
Cu OFC
AWG
24
Stranding
25/38
Section (mm2)
0.20
Insulation
PEX
Shield
Cu + Drain Wire
Nominal Size
14.6
Weight (Kg)
261
Colour
Black
Use
mobile installation
Jacket
PTC / FRLSZH
0275PTC/FCA

Description
