- Nº conductors
- 3 | 1 | 9
- Conductor
- Cu Sn | Cu Sn | Cu Sn
- AWG
- 28 | 24 | 26
- Stranding
- 7/36 | 7/32 | 7/34
- Section (mm2)
- 0.08 | 0.22 | 0.123
- Insulation
- FHDPE | PTC | PTC
- Shield
- Cusn | AL-Pet | -
- Nominal Size
- 9.95
- Weight (Kg)
- 137
- Use
- mobile installation
- Jacket
- PTC / FRLSZH
- Composition
- Coax Vídeo | Star - Quad Audio | Signal Cable

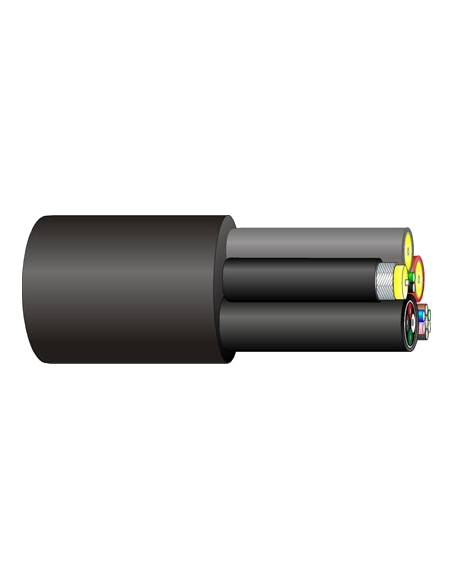

Video Cable Percon VK 241
Super-flexible composite cable combining 3 × 75 Ω video coaxials, a star-quad for audio and 9 signal conductors, for a wide range of video, audio and control applications. For mobile use.
The Percon VK 241 is a composite video, audio and control cable for a wide range of applications, carrying all these signals in a single run.
It includes three 75 Ω video coaxials (VK 1 type), each with a 7-strand 0.08 mm² (28 AWG) tinned copper (CuSn) conductor, foamed high-density polyethylene (FHDPE) insulation and a tinned copper shield; one star-quad for audio, with 7-strand 0.22 mm² (24 AWG) tinned copper conductors, PTC insulation and an Al-PET shield; and nine 7-strand 0.123 mm² (26 AWG) tinned copper signal conductors with PTC insulation.
With a nominal outer diameter of 9.95 mm and a weight of 137 kg/km, it is available with a PTC jacket or with an FRLSZH jacket — flame retardant, low smoke and zero halogen. Its super-flexible construction, with all conductors stranded, makes it ideal for OB vans, cameras, events and live productions.
Key features
- Composite cable: 3 × 75 Ω video coaxials + 1 audio star-quad + 9 signal conductors
- Coaxials (VK 1 type): 7-strand CuSn, 0.08 mm² (28 AWG), FHDPE insulation, tinned copper shield
- Audio star-quad: 7-strand CuSn, 0.22 mm² (24 AWG), PTC insulation, Al-PET shield
- Signal conductors: 7-strand CuSn, 0.123 mm² (26 AWG), PTC insulation
- Super-flexible, designed for mobile use
- PTC or FRLSZH jacket (flame retardant, low smoke, zero halogen)
- Nominal outer diameter: 9.95 mm · Weight: 137 kg/km
