Super-flexible composite cable combining 2 × 75 Ω video coaxials, 4 audio coaxials and a control signal conductor, for a wide range of applications. For mobile use.

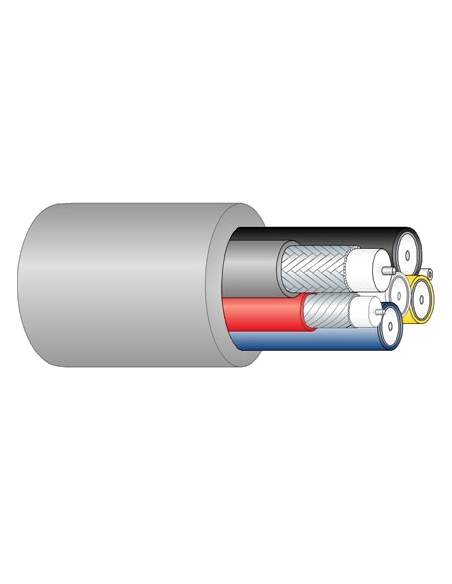

The Percon VK 240 is a composite video, audio and control cable for a wide range of applications, carrying all these signals in a single run.
It includes two 75 Ω video coaxials (VK 1 type), each with a 7-strand 0.08 mm² (28 AWG) tinned copper (CuSn) conductor and PEX insulation; four audio coaxials, each with a 7-strand 0.08 mm² (28 AWG) tinned copper conductor and PE insulation; and one 7-strand 0.123 mm² (26 AWG) tinned copper signal conductor with PTC insulation.
With a nominal outer diameter of 9 mm and a weight of 121 kg/km, it is available with a PTC jacket or with an FRLSZH jacket — flame retardant, low smoke and zero halogen — in grey. Its super-flexible construction, with all conductors stranded, makes it ideal for OB vans, cameras, events and live productions.
