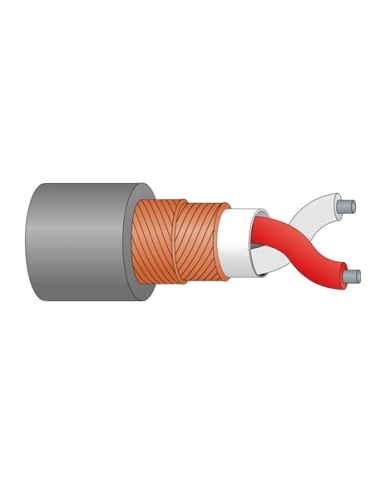

Audio Cable Percon AK 2034

Audio Cable Percon AK 2034

0112HF/FCA

The Percon AK 2034 is a single-pair AES/EBU (AES3) digital audio cable designed to deliver the signal intact from one device to another in broadcast and professional AV environments.

Its 110-ohm characteristic impedance matches the AES/EBU standard, so the digital signal is transmitted without reflections or data loss. Its very low capacitance preserves signal quality over long runs, and its balanced, shielded construction protects it from noise and surrounding interference.

Two versions are available to suit each installation:

  • Aluminium shield: the choice for fixed cabling in racks, cable trays and technical rooms.
  • Copper shield: more flexible and resistant to constant handling, for OB vans, live events and outside production.

Applications:

  • Interconnecting digital audio equipment in studios and control rooms
  • Rack and technical facility cabling
  • OB vans, live events and outside production
  • Professional AV installations

COLOUR
  • Gray
NORMATIVA
CUBIERTA

Product Details

Nº conductors
2
Conductor
CuSn OFC
AWG
22
Stranding
7/30
Section (mm2)
0.34
Insulation
PEX
Shield
Cu + Cu
Nominal Size
6.0
Weight (Kg)
58
Use
mobile installation
Jacket
PTC/ FRLSZH
0112HF/FCA
