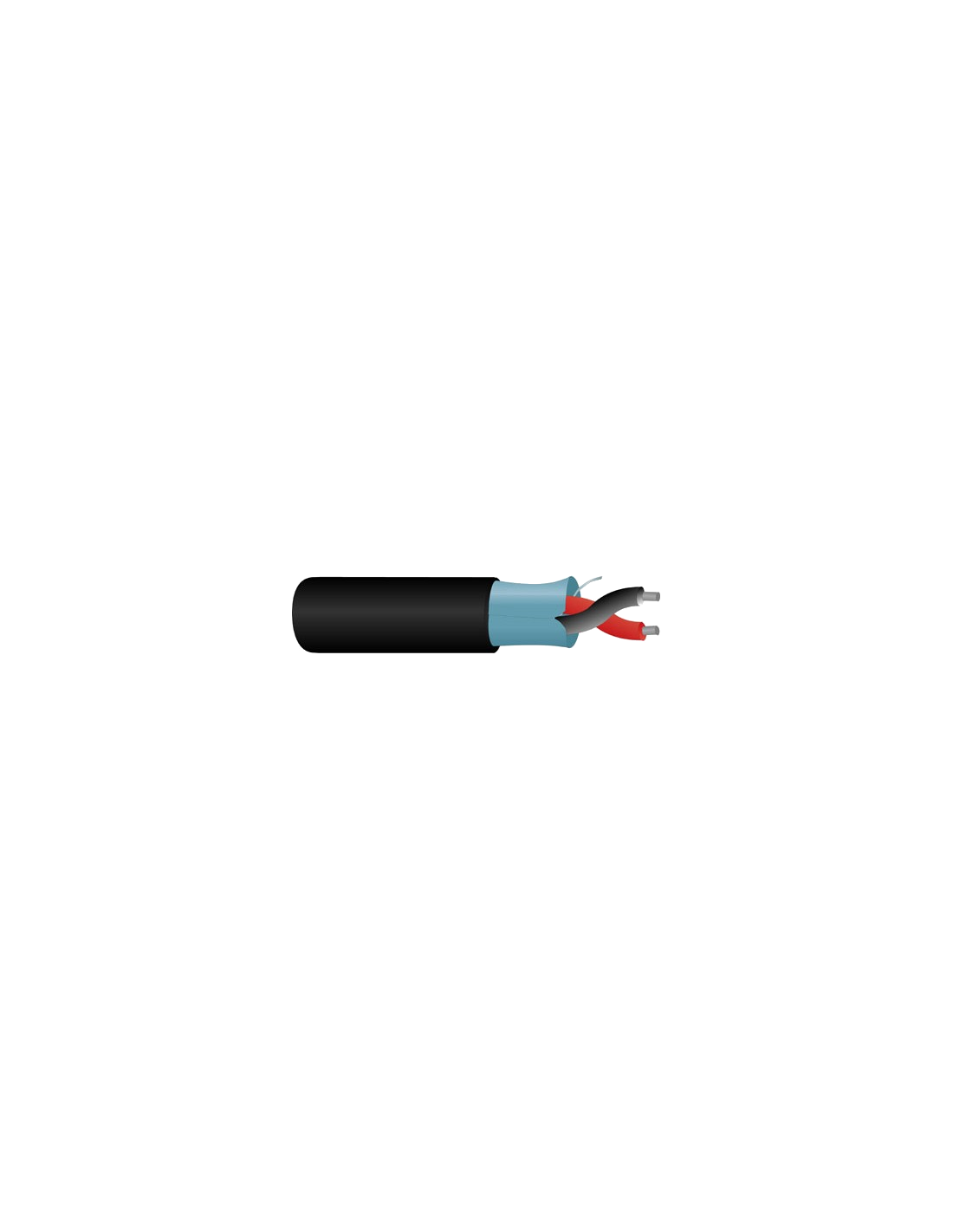

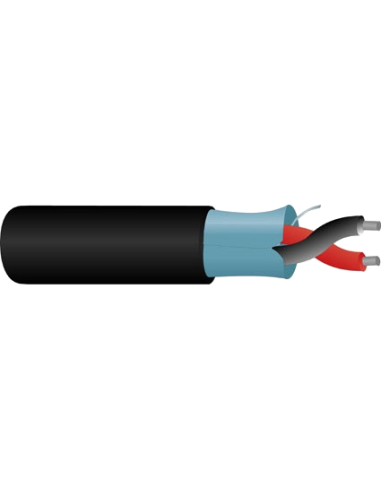

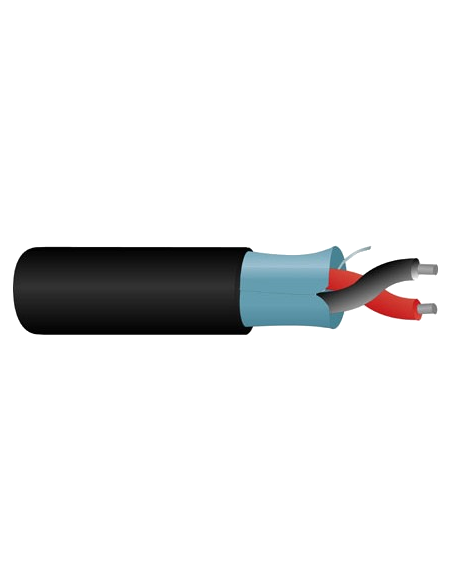

Audio Cable Percon AK 7001 AL FRLS ECA
Percon
Audio Cable Percon AK 7001 AL FRLS ECA

Audio Cable Percon AK 7001 AL FRLS ECA

AK 7001 AL FRLS ECA

Balanced, shielded digital audio cable with very low capacitance and 110 Ω characteristic impedance. Aluminium shield and FRLSZH jacket, for fixed installation.

The Percon AK 7001 AL FRLS ECA is a single-pair balanced digital audio cable with 110 Ω characteristic impedance, suitable for AES/EBU signal transmission in fixed installations. Its very low capacitance preserves digital signal integrity over long runs.

Its 0.13 mm² (26 AWG) tinned oxygen-free copper (CuSn OFC) conductors with PEX insulation ensure stable, reliable transmission. The Al-PET shield with drain wire protects the signal against interference.

With a nominal outer diameter of just 3.4 mm and a weight of 15 kg/km, it is a thin, lightweight cable, easy to route through racks, cable trays and technical rooms. Its FRLSZH jacket — flame retardant, low smoke and zero halogen — makes it suitable for spaces where fire safety is a priority.

Also available in a copper-shielded version for mobile installations.

Key features

  • Balanced digital audio, 1 shielded pair
  • 110 Ω characteristic impedance and very low capacitance
  • Tinned oxygen-free copper (CuSn OFC) conductors, 26 AWG
  • Al-PET shield + drain wire
  • Designed for fixed installation
  • FRLSZH jacket (flame retardant, low smoke, zero halogen)
  • Nominal outer diameter: 3.4 mm · Weight: 15 kg/km

Product Details

Nº conductors
2
Conductor
CuSn OFC
AWG
26
Stranding
7/34
Section (mm2)
0.13
Insulation
PEX
Shield
Al-PET +Drain Wire
Nominal Size
3.4
Weight (Kg)
15
Use
fixed installation
Jacket
FRLSZH
0235BRFRLS/ECA
