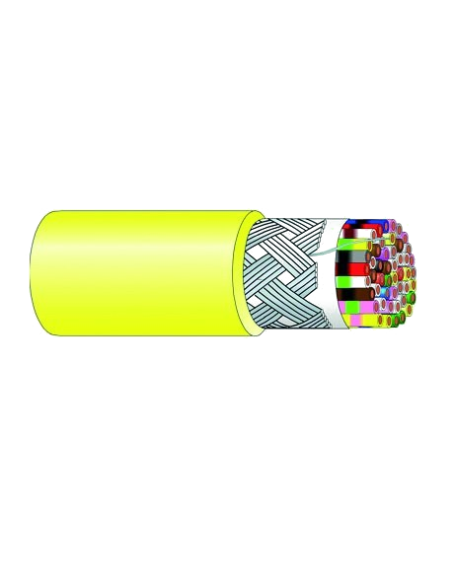

Data Cable CK Series Percon CK 0050
Percon
Data Cable CK Series Percon CK 0050

Data Cable CK Series Percon CK 0050

CK 0050

Shielded 50-conductor 0.22 mm² multicore control cable, ideal for IT, instrumentation and control applications that do not require very high bandwidth.

The Percon CK 0050, from the CK series, is a shielded multicore control cable with 50 stranded copper (Cu) conductors of 0.22 mm² and PTC insulation. It is ideal for IT, instrumentation and control applications that do not require very high bandwidth and where a large number of signals must be carried in a single cable.

Its Al-PET tape and tinned copper braid shield with drain wire protects the signals against interference. With a weight of 150 kg/km and an easy-to-identify yellow PTC jacket, it is a manageable cable for mobile installations, racks and equipment interconnection.

Key features

  • CK series multicore control cable
  • 50 stranded copper (Cu) conductors, 0.22 mm²
  • PTC insulation
  • Al-PET + tinned copper braid + drain wire shield
  • For IT, instrumentation and control applications
  • Designed for mobile use
  • Yellow PTC jacket
  • Weight: 150 kg/km

Product Details

Nº conductors
50
Conductor
Cu
AWG
28
Stranding
7/34
Section (mm2)
0.22
Insulation
PTC
Shield
AL - PET - CuSn + Drain Wire
Nominal Size
9.5
Weight (Kg)
150
Colour
Yellow
Use
mobile installation
Jacket
PTC
0408
