Data Cable CK Series Percon CK 0016 FCA

Percon CK 0016 multicore control cable: 16 shielded conductors for mobile control and instrumentation

When an installation needs to carry many control signals between moving equipment, the answer is to group them without compromising protection. The CK 0016 brings together 16 shielded conductors in a single flexible cable.

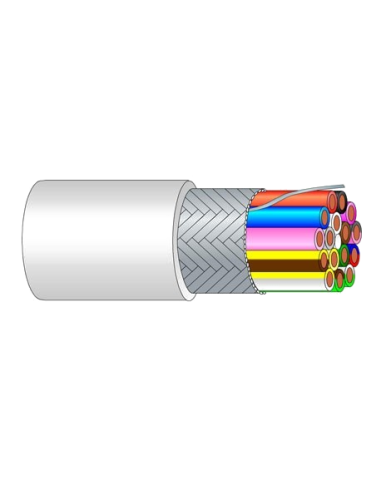

The Percon CK 0016 FCA is a 16-conductor multicore control cable with a 0.22 mm² cross-section, designed for IT, instrumentation and control applications where very high bandwidth is not required. Its conductor count allows command, status and low-speed communication signals to share a single run, for tidier cabling that is easier to maintain.

The tinned copper braid shield with drain wire protects signals against electromagnetic noise in studios, OB vans, technical rooms and control cabinets. The 7-strand copper conductors and PTC (PVC + rubber) insulation provide the flexibility required in mobile installations, where the cable is regularly moved, coiled and repositioned.

Key benefits

• 16 conductors of 0.22 mm² (24 AWG): many control signals in a single cable, with fewer runs and fewer points of failure.
• CuSn braid shield + drain wire: protection against interference and straightforward grounding.
• PTC (PVC + rubber) insulation: flexibility and durability for continuous mobile use.
• 7-strand copper conductors (7/32): withstand constant movement and coiling.
• Versatile use: IT, instrumentation and control with low-speed signals.
