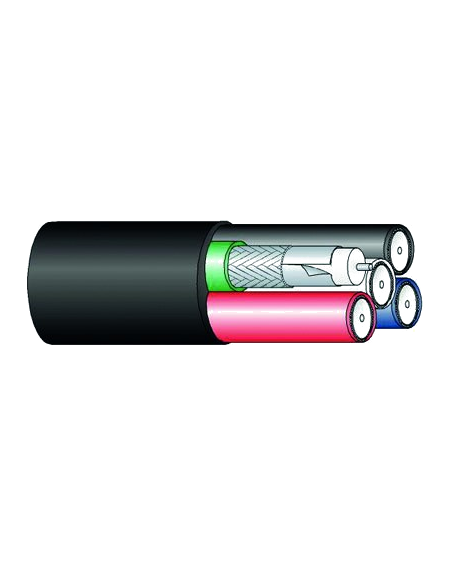

Video Cable Percon VK 5378/680 PTC FCA

Video Cable Percon VK 5378/680 PTC FCA

VK 5378/680 PTC FCA

High-quality 5-coax multicoaxial cable for professional video, projection and IT: RGBHV and component video (RGB, Y/R-Y/B-Y, Y/Pb/Pr, Y/Cb/Cr), with Fca classification.

The Percon VK 5378/680 PTC FCA is a high-quality multicoaxial cable for analogue and digital video, designed for professional video, video projection, IT and presentation room applications. Its five coaxials carry RGBHV signals and component video in all its formats: RGB, Y/R-Y/B-Y, Y/Pb/Pr and Y/Cb/Cr.

Each coaxial (0.8/3.7 mm) features a 0.5 mm² (20 AWG) solid copper (Cu) conductor and foamed high-density polyethylene (FHDPE) insulation, ensuring stable, low-loss signal transmission. Its double shield, made of an aluminium/polyester/aluminium tape and a tinned copper braid, protects each signal against interference.

With a nominal outer diameter of 18.6 mm, a weight of 375 kg/km, a black PTC jacket and Fca reaction-to-fire classification, it brings all the video signals of a projection system together in a single run.

Key features

  • 5-coax multicoaxial (0.8/3.7 mm)
  • For RGBHV and component video: RGB, Y/R-Y/B-Y, Y/Pb/Pr, Y/Cb/Cr
  • Solid copper (Cu) conductor, 0.5 mm² (20 AWG)
  • FHDPE insulation (foamed high-density polyethylene)
  • Double shield per coaxial: Al/PET/Al tape + tinned copper braid
  • Black PTC jacket
  • Fca reaction-to-fire classification
  • Nominal outer diameter: 18.6 mm · Weight: 375 kg/km

Product Details

Conductor
Cu
AWG
20
Stranding
Solid
Section (mm2)
0.5
Insulation
FHDPE
Shield
AL - Pet - Al + CuSn |
Nominal Size
18.6
Weight (Kg)
375
Colour
Black
Nº of coaxials
0.8/3.7 x 5
Jacket
PTC
0388PTC/680/FCA

Description
