Audio Cable Percon AK 244000 STAR-QUAD
Percon
Audio Cable Percon AK 244000 STAR-QUAD

Audio Cable Percon AK 244000 STAR-QUAD

0297

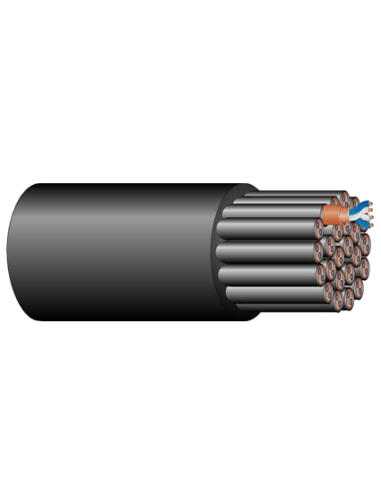

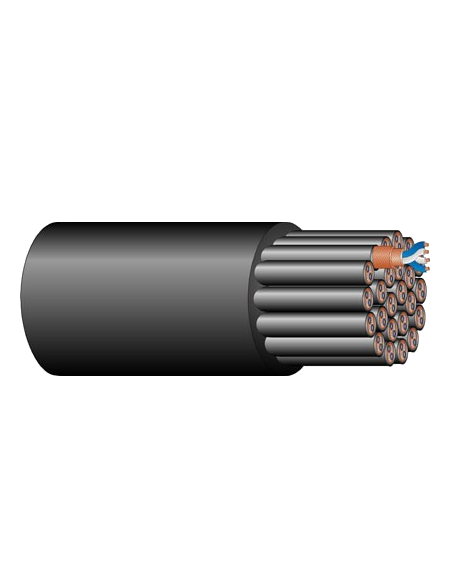

The Percon AK 244000 STAR-QUAD audio cable carries 24 balanced analogue audio signals in a single cable, with star-quad performance on every channel. It is designed for mobile snakes in OB vans, outside broadcast production, concerts, live events and temporary set-ups.

Each channel uses four conductors twisted in a quad formation instead of a standard pair. Opposite conductors are connected together, so interference picked up along the cable is almost completely cancelled at the receiving equipment. The result is an excellent signal-to-noise ratio (SNR) and strong immunity to hum and electromagnetic interference, even close to power cables, lighting or high-power equipment.

Each quad is protected by a double copper spiral shield, which prevents crosstalk between channels while keeping the cable flexible, easy to coil and resistant to heavy use.

Applications:

  • Multichannel snakes between stage and control
  • OB vans and outside broadcast production
  • Concerts, live sound and live events
  • Temporary set-ups at trade fairs, sets and auditoriums

COLOUR
  • Black
NORMATIVA
CUBIERTA

Product Details

Nº conductors
24 Quads
Conductor
Cu OFC
AWG
24
Stranding
25/38
Section (mm2)
0.20
Insulation
PPEX
Shield
Cu + Cu Spiral
Nominal Size
30.4
Weight (Kg)
1015
Colour
Black
Use
mobile installation
Jacket
PTC
0297
