Audio Cable Percon AK 84000 HF
Percon
Audio Cable Percon AK 84000 HF

Audio Cable Percon AK 84000 HF

AK 84000 HF

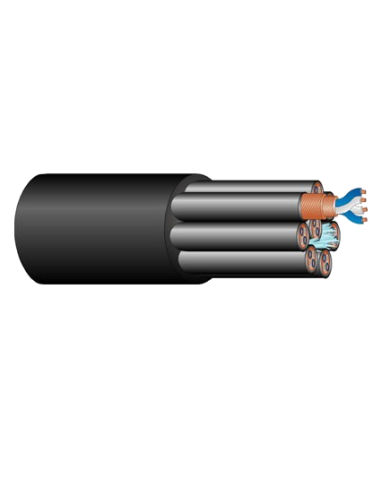

The Percon AK 84000 HF audio cable carries 8 balanced analogue audio signals in a single cable, with star-quad performance on every channel. It is designed for mobile snakes in theatres, auditoriums, studios, sets and event venues, where halogen-free cables are required for safety.

Each channel uses four conductors twisted in a quad formation instead of a standard pair. Opposite conductors are connected together, so interference picked up along the cable is almost completely cancelled at the receiving equipment. The result is an excellent signal-to-noise ratio (SNR) and strong immunity to hum and electromagnetic interference, even close to power cables, lighting or high-power equipment.

Each quad is protected by a double copper spiral shield, which prevents crosstalk between channels while keeping the cable flexible, easy to coil and resistant to heavy use. Its halogen-free jacket does not release corrosive or toxic gases in the event of fire, protecting both people and equipment in the room.

Applications:

  • Mobile snakes in theatres, auditoriums and public venues
  • Radio and television studios and sets
  • Concerts, live sound and indoor events
  • OB vans and temporary set-ups

Product Details

Nº conductors
8 Quads
Conductor
Cu OFC
AWG
24
Stranding
25/38
Section (mm2)
0.20
Insulation
PPEX
Shield
Cu + Cu Spiral
Nominal Size
17
Weight (Kg)
524
Colour
Black
Use
mobile installation
Jacket
FRLSZH
0295HF
