Audio Cable Percon AK 201 AL PTC FCA
Percon
Audio Cable Percon AK 201 AL PTC FCA

Audio Cable Percon AK 201 AL PTC FCA

AK 201 AL PTC FCA

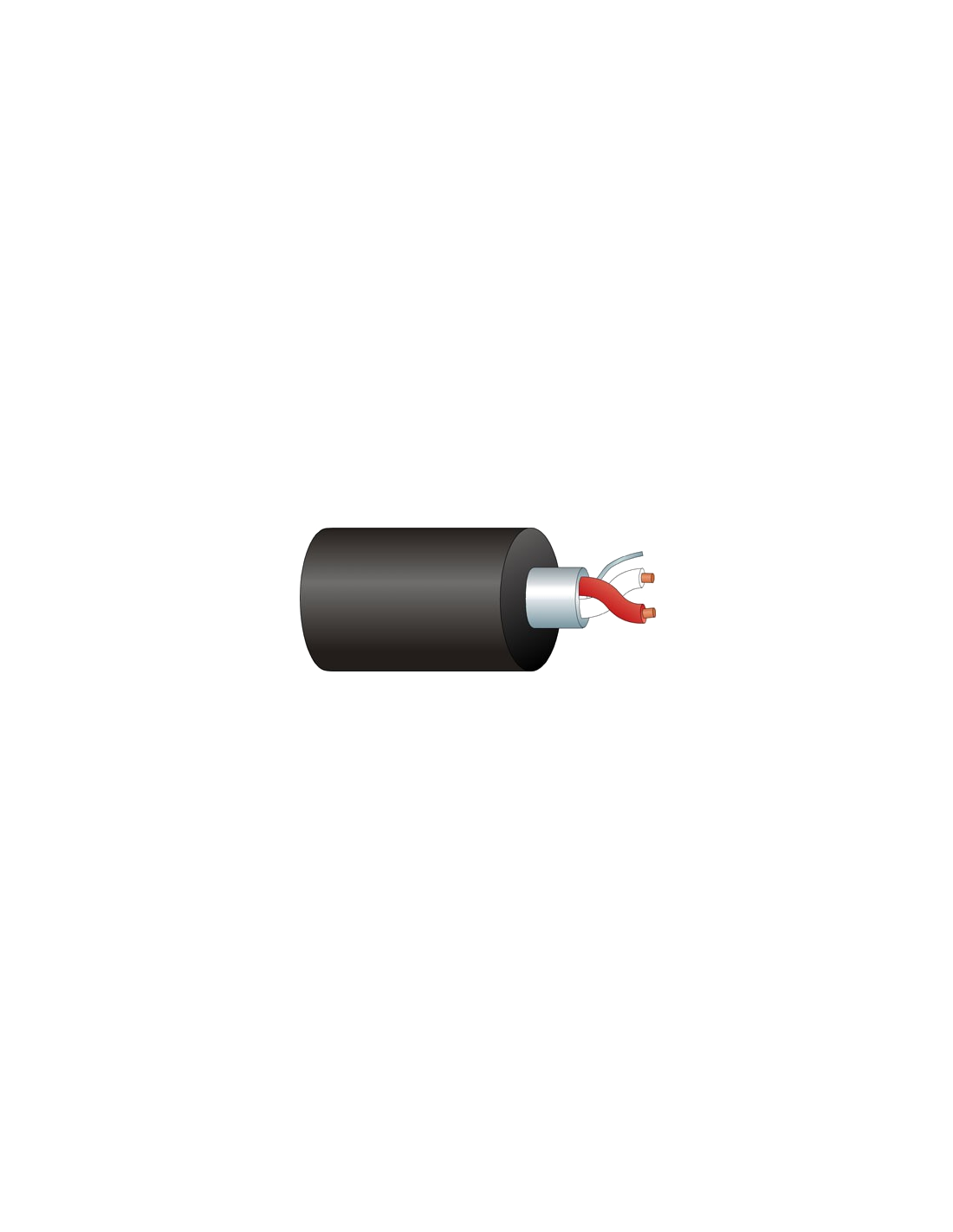

Balanced analogue audio cable with one twisted pair of AWG 24 oxygen-free copper (OFC), shielded and with low capacitance. Prepared in just 2 steps: cut and solder. For fixed and mobile installation. Euroclass Fca according to EN 50575.

Description:

The Percon AK 201 AL PTC FCA audio cable is designed for analogue audio cabling in radio and television studios, control rooms, technical facilities, theatres and professional AV installations. It is suitable for both fixed installation and mobile use.

Its two 0.20 mm² (AWG 24) oxygen-free copper (Cu OFC) conductors form a twisted pair that reduces interference and noise. The aluminium-polyester (Al-PET) shield with drain wire protects the balanced signal along the entire run, and its low capacitance preserves audio quality even over long distances.

Its new design reduces cable preparation to just 2 steps: cut and solder. When the jacket is stripped, the aluminium shield comes away with it and the drain wire is already twisted, ready to solder. There is no need to remove the shield by hand or twist the drain wire, which saves time on every connection and reduces assembly errors.

It has a 5.9 mm outer diameter and a black jacket. It also meets Euroclass Fca according to EN 50575 (CPR), for permanent building installations covered by this regulation, according to the requirements of each project.

Applications:

  • Fixed microphone and line cabling between studios, sets and control rooms
  • Connection of mixing consoles, matrices and audio processors
  • Productions that combine fixed installation and mobile use
  • Theatres, auditoriums and event venues with professional AV

Product Details

Nº conductors
2
Conductor
Cu OFC
AWG
24
Stranding
25/38
Section (mm2)
0.20
Insulation
PPEX
Shield
Al-PET +Drain Wire
Nominal Size
5.9
Weight (Kg)
45
Colour
Black
Use
Fixed and mobile instalation
Jacket
PTC
0170PTC/FCA
