Audio Cable Percon AK 1340 AL PTC ECA
Percon
Audio Cable Percon AK 1340 AL PTC ECA

Audio Cable Percon AK 1340 AL PTC ECA

AK 1340 AL PTC ECA

The Percon AK 1340 AL PTC ECA audio cable is designed for permanent analogue audio installations in radio and television studios, control rooms, technical facilities, theatres, auditoriums and professional AV installations.

Its twisted pair reduces electromagnetic interference and noise, and its balanced, shielded construction protects the signal along the entire run. Its low capacitance preserves audio quality even over long distances.

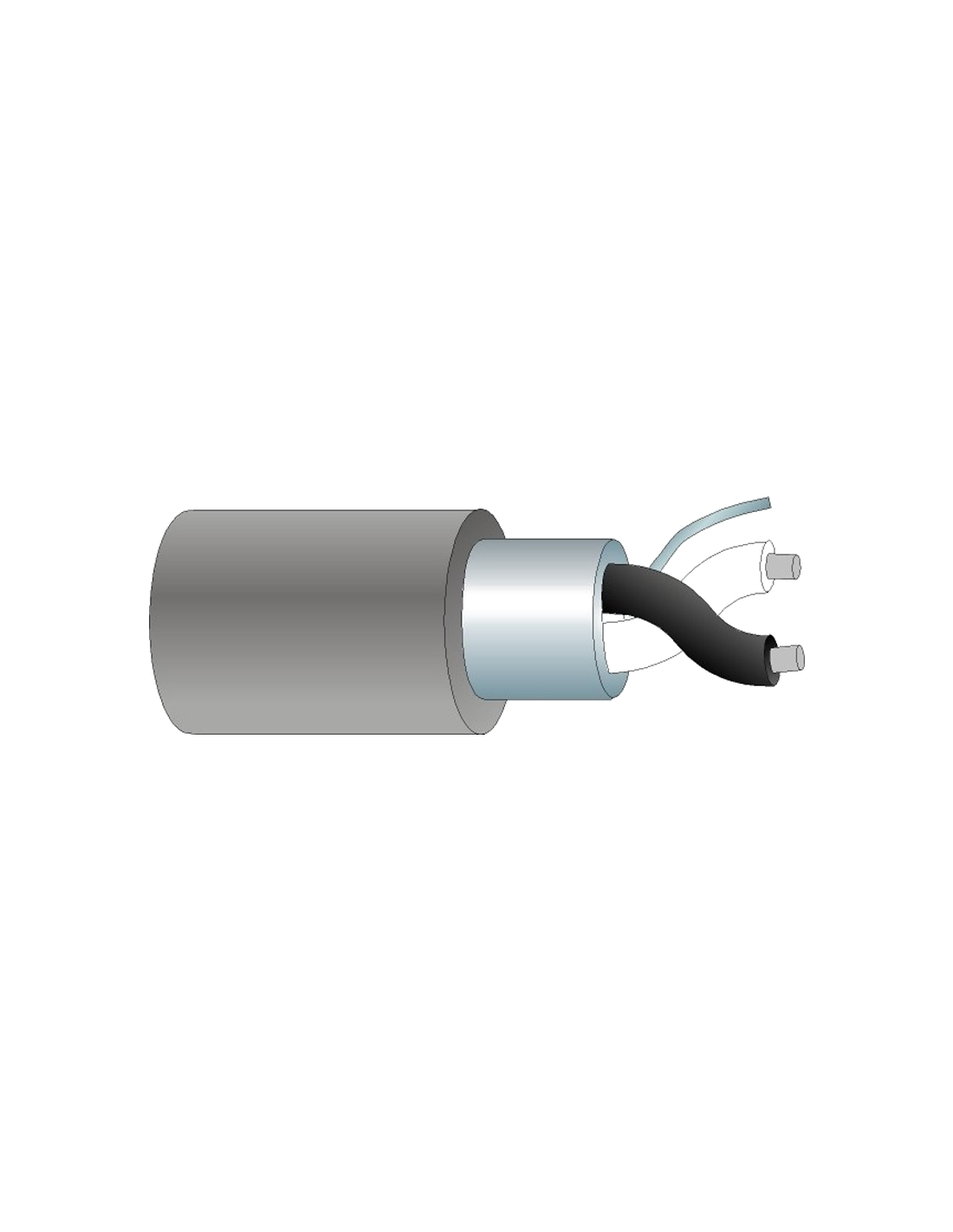

Its new design reduces cable preparation to just 2 steps: cut and solder. When the jacket is stripped, the aluminium shield comes away with it and the drain wire is already twisted, ready to solder. There is no need to remove the shield by hand or twist the drain wire, which saves time on every connection and reduces assembly errors.

It meets Euroclass Eca according to EN 50575, under the European Construction Products Regulation (CPR), for permanent building installations that require this reaction-to-fire class.

Applications:

  • Fixed microphone and line cabling between studios, sets and control rooms
  • Building installations that require Euroclass Eca
  • Connection of mixing consoles, matrices and audio processors
  • Theatres, auditoriums and event venues with professional AV

Product Details

Nº conductors
2
Conductor
Cu Sn
AWG
22
Stranding
7/30
Section (mm2)
0.34
Insulation
PE
Shield
AL - Pet + Drain wire
Nominal Size
4.5
Weight (Kg)
26
Colour
Grey
Use
mobile installation
Jacket
PTC
0095PTC/ECA
