VK 540 HF

Composite cable with 5 video mini-coaxials and 5 signal conductors, for professional Y/C and RGBHV applications and audio, video and control signals. For mobile use.

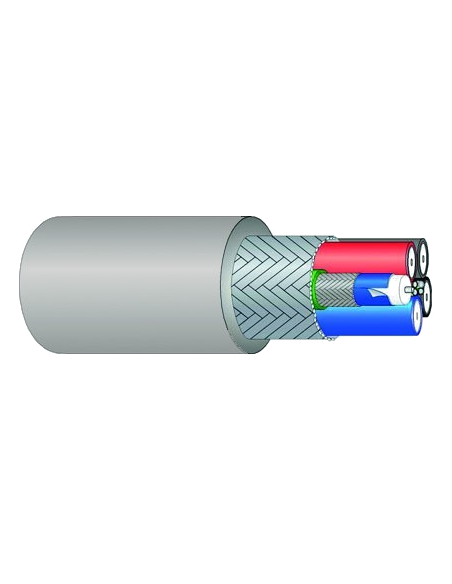

The Percon VK 540 HF is a composite cable designed mainly for professional Y/C and RGBHV applications, as well as miniature audio, video and control applications.

It brings together under a single jacket five video mini-coaxials, each with a 0.125 mm² (26 AWG) solid tinned copper (CuSn) conductor, foamed high-density polyethylene (FHDPE) insulation and a tinned copper shield, and five 7-strand 0.123 mm² (26 AWG) tinned copper signal conductors with FRLSZH insulation. This combination carries video, sync and control in a single run.

With a nominal outer diameter of 10 mm and a weight of 135 kg/km, it is available with an FRLS jacket — flame retardant and low smoke — or an FRLSZH jacket, which is also halogen free, in grey.

Key features

  • Composite cable: 5 video mini-coaxials + 5 signal conductors
  • For Y/C, RGBHV and audio, video and control signals
  • Mini-coaxials: solid CuSn conductor, 0.125 mm² (26 AWG), FHDPE insulation, tinned copper shield
  • Signal conductors: 7-strand CuSn, 0.123 mm² (26 AWG), FRLSZH insulation
  • Designed for mobile use
  • Grey FRLS or FRLSZH jacket
  • Nominal outer diameter: 10 mm · Weight: 135 kg/km

Product Details

Nº conductors
5 | 5
Conductor
Cu Sn | Cu Sn
AWG
26 | 26
Stranding
Solid | 7/34
Section (mm2)
0.125 | 0.123
Insulation
FHDPE | FRLSZH
Shield
Cusn | -
Nominal Size
10
Weight (Kg)
135
Colour
Grey
Use
mobile installation
Jacket
FRLS / FRLSZH
Composition
Coax Video | Signal cable
0333HF
