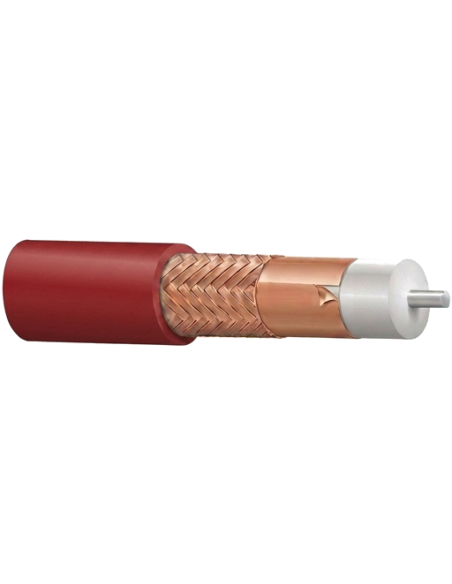

Video Cable Percon VK 51 EMC SILVER +HF

Video Cable Percon VK 51 EMC SILVER +HF

VK 51 EMC SILVER +HF

Silver+ EMC digital video coaxial cable for SDI, HD-SDI, 3G-SDI and UHD signals, with a triple shield providing over 130 dB attenuation against electromagnetic interference. For fixed installation.

The Percon VK 51 EMC Silver+ HF is a video coaxial cable designed for digital applications. It supports serial digital (SDI) transmission and high-definition formats according to SMPTE 259M (270 Mb/s, SDI), SMPTE 292M (1.5 Gb/s, HD-SDI) and SMPTE 424M (3G-SDI), as well as UHD-1 and UHD-2 formats. It is also suitable for critical analogue circuits.

Its 0.28 mm² (23 AWG) solid silver-plated copper (EHC Cu Ag) conductor with foamed high-density polyethylene (FHDPE+) insulation ensures precise, low-loss signal transmission.

It is specially designed for installations with high interference levels, such as those near power cables, transformers, lighting dimmers or mobile phone signals. Its triple shield, made of an aluminium/polyester/aluminium tape, a tinned copper braid with 95% coverage and a second aluminium/polyester tape, offers low transfer impedance and minimal DC resistance, achieving over 130 dB attenuation against high, medium and low frequency electromagnetic signals.

With a nominal outer diameter of 4.5 mm and a weight of 23.7 kg/km, it is available with a CMR jacket or with an FRLSZH jacket — flame retardant, low smoke and zero halogen.

Key features

  • Digital video coaxial: SDI, HD-SDI, 3G-SDI and UHD
  • Compliant with SMPTE 259M, SMPTE 292M and SMPTE 424M
  • Solid silver-plated copper (EHC Cu Ag) conductor, 0.28 mm² (23 AWG)
  • FHDPE+ insulation (foamed high-density polyethylene)
  • Triple shield: Al/PET/Al tape + 95% tinned copper braid + Al/PET tape
  • Over 130 dB attenuation against electromagnetic interference
  • Designed for fixed installation
  • CMR or FRLSZH jacket (flame retardant, low smoke, zero halogen)
  • Nominal outer diameter: 4.5 mm · Weight: 23.7 kg/km

Product Details

Nº conductors
1
Conductor
EHC Cu Ag
AWG
23
Stranding
Solid
Section (mm2)
0.28
Insulation
FHDPE +
Shield
Al-Pet + Al
Nominal Size
4.5
Weight (Kg)
23.7
Use
fixed installation
Jacket
CMR | FRLSZH/EMC
0564RHF/EMC/B2CA
