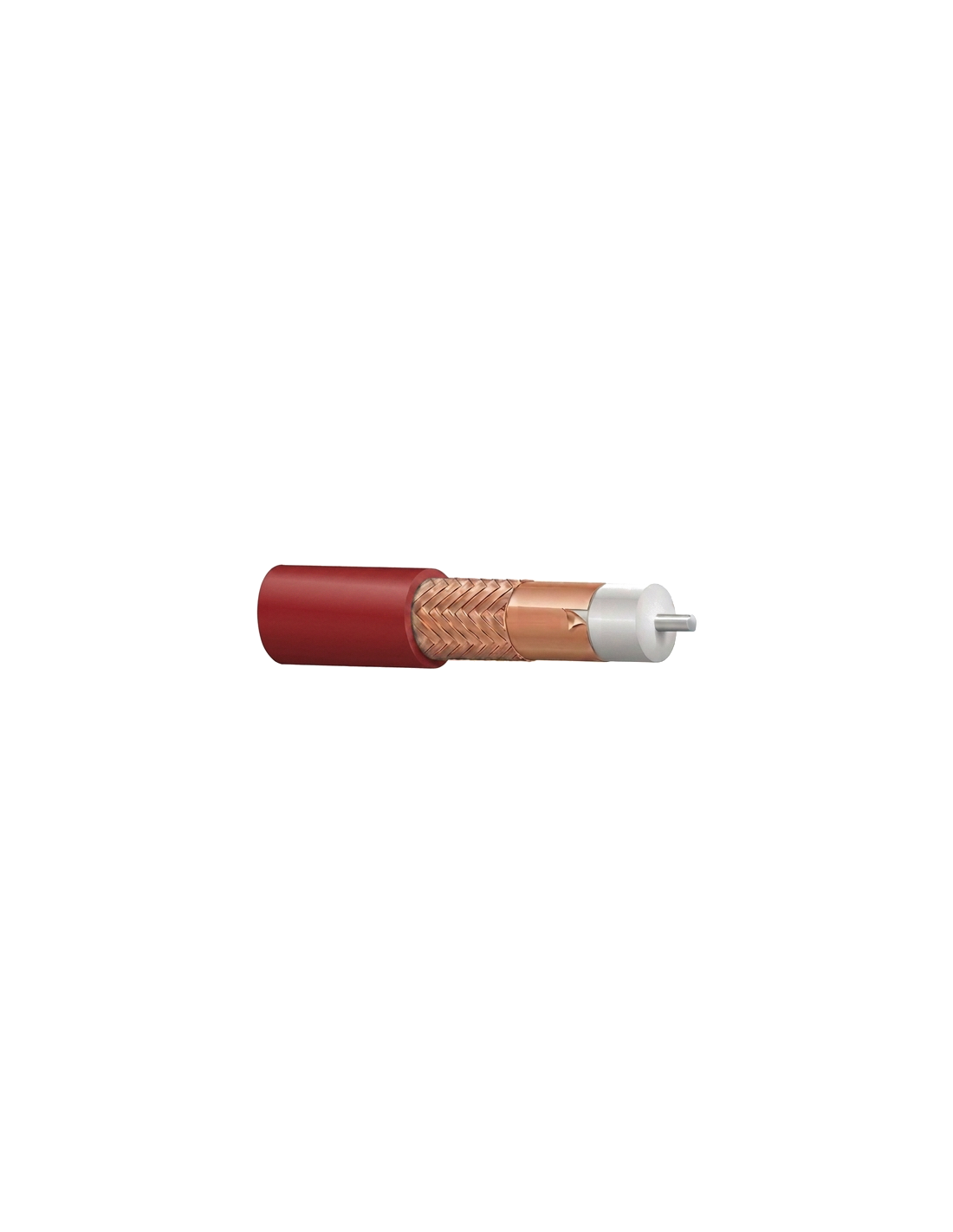

ideo Cable Percon VK 70 Silver +
Percon
ideo Cable Percon VK 70 Silver +

ideo Cable Percon VK 70 Silver +

0580RHF/EMC/CCA

Silver+ digital video coaxial cable for SDI, HD-SDI, 3G-SDI and UHD signals, with a double shield providing over 110 dB attenuation against electromagnetic interference. Also available in an EMC version with triple shield and over 130 dB. For fixed installation.

The Percon VK 70 Silver+ is a video coaxial cable designed for digital applications. It supports serial digital (SDI) transmission and high-definition formats according to SMPTE 259M (270 Mb/s, SDI), SMPTE 292M (1.5 Gb/s, HD-SDI) and SMPTE 424M (3G-SDI), as well as UHD-1 and UHD-2 formats. It is also suitable for critical analogue circuits.

Its 0.785 mm² (18 AWG) solid silver-plated copper (EHC Cu Ag) conductor with foamed high-density polyethylene (FHDPE+) insulation ensures precise, low-loss signal transmission. Its larger cross-section makes it particularly suitable for long runs.

It is especially suited to installations with high interference levels, such as those near power cables, transformers, lighting dimmers or mobile phone signals. Its double shield, made of a polished copper/polyester tape and a copper braid with 95% coverage, offers low transfer impedance and minimal DC resistance, achieving over 110 dB attenuation against high, medium and low frequency electromagnetic signals. Less interference means fewer incidents and fewer service calls.

For even more demanding environments, the EMC version features a triple shield, made of an aluminium/polyester/aluminium tape, a tinned copper braid with 95% coverage and a second aluminium/polyester tape, raising electromagnetic interference attenuation above 130 dB.

With a nominal outer diameter of 7.1 mm, a weight of 71 kg/km and an FRLSZH jacket — flame retardant, low smoke and zero halogen — it is the safe choice when signal quality allows no compromise.

COLOUR
  • Red
  • Black
  • Blue
  • Green
  • Yellow
  • Violet
  • MARFIL
NORMATIVA
CUBIERTA

Product Details

Nº conductors
1
Conductor
EHC Cu Ag
AWG
18
Stranding
Solid
Section (mm2)
0.785
Insulation
FHDPE +
Shield
Cu - Pet + Cu
Nominal Size
7.1
Weight (Kg)
71
Colour
Red
Use
fixed installation
Jacket
FRLSZH
0580RHF/EMC/CCA

Description

Key features

  • Digital video coaxial: SDI, HD-SDI, 3G-SDI and UHD
  • Compliant with SMPTE 259M, SMPTE 292M and SMPTE 424M
  • Solid silver-plated copper (EHC Cu Ag) conductor, 0.785 mm² (18 AWG)
  • FHDPE+ insulation (foamed high-density polyethylene)
  • Double shield: copper/polyester tape + 95% copper braid, over 110 dB attenuation
  • EMC version: triple shield (Al/PET/Al tape + 95% tinned copper braid + Al/PET tape), over 130 dB attenuation
  • Designed for fixed installation
  • FRLSZH jacket (flame retardant, low smoke, zero halogen)
  • Nominal outer diameter: 7.1 mm · Weight: 71 kg/km
