Video Cable Percon VK 660 ENH+
Percon
Video Cable Percon VK 660 ENH+

Video Cable Percon VK 660 ENH+

VK 660 ENH+

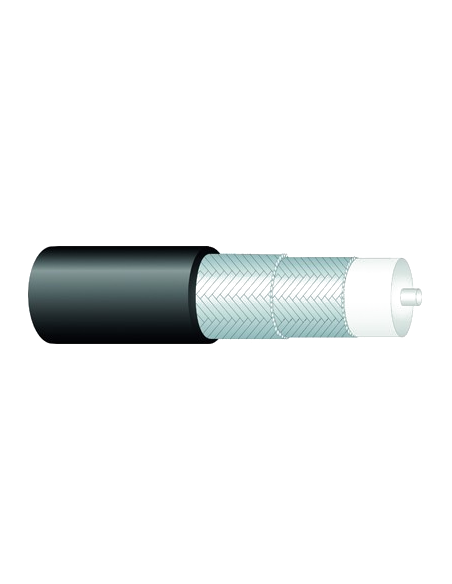

Video coaxial cable for mobile SDI, HD-SDI and 3G-SDI digital applications, with stranded conductor and double copper shield providing over 100 dB attenuation against electromagnetic interference.

The Percon VK 660 ENH+ is a video coaxial cable designed for mobile digital applications. It supports serial digital (SDI) transmission and high-definition formats according to SMPTE 259M (270 Mb/s, SDI), SMPTE 292M (1.5 Gb/s, HD-SDI) and SMPTE 424M (3G-SDI). It is also suitable for critical analogue circuits.

Its 7-strand 0.50 mm² (20 AWG) copper (Cu) conductor with foamed high-density polyethylene (FHDPE+) insulation ensures precise, low-loss signal transmission while providing the flexibility needed for frequent handling. Its double copper shield provides over 100 dB attenuation against electromagnetic interference.

With a nominal outer diameter of 6.35 mm and a weight of 75 kg/km, it is available with a PTC or CMR jacket, making it a reliable choice for OB vans, cameras, events and live productions.

Key features

  • Digital video coaxial: SDI, HD-SDI and 3G-SDI
  • Compliant with SMPTE 259M, SMPTE 292M and SMPTE 424M
  • 7-strand copper (Cu) conductor, 0.50 mm² (20 AWG)
  • FHDPE+ insulation (foamed high-density polyethylene)
  • Double copper shield, over 100 dB attenuation
  • Flexible, designed for mobile use
  • PTC or CMR jacket
  • Nominal outer diameter: 6.35 mm · Weight: 75 kg/km

Product Details

Nº conductors
1
Conductor
Cu
AWG
20
Stranding
7/29
Section (mm2)
0.50
Insulation
FHDPE +
Shield
Cusn | Cusn
Nominal Size
6.35
Weight (Kg)
75
Use
mobile installation
Jacket
PTC / CMR
0476/660/ECA
