Silver+ digital video coaxial cable for SDI, HD-SDI, 3G-SDI and UHD signals, with a double shield providing over 110 dB attenuation against electromagnetic interference. For mobile use.
The Percon VK 580 Silver+ is a video coaxial cable designed for digital applications. It supports serial digital (SDI) transmission and high-definition formats according to SMPTE 259M (270 Mb/s, SDI), SMPTE 292M (1.5 Gb/s, HD-SDI) and SMPTE 424M (3G-SDI), as well as UHD-1 and UHD-2 formats. It is also suitable for critical analogue circuits.
Its 0.38 mm² (21 AWG) solid silver-plated copper (EHC Cu Ag) conductor with foamed high-density polyethylene (FHDPE+) insulation ensures precise, low-loss signal transmission.

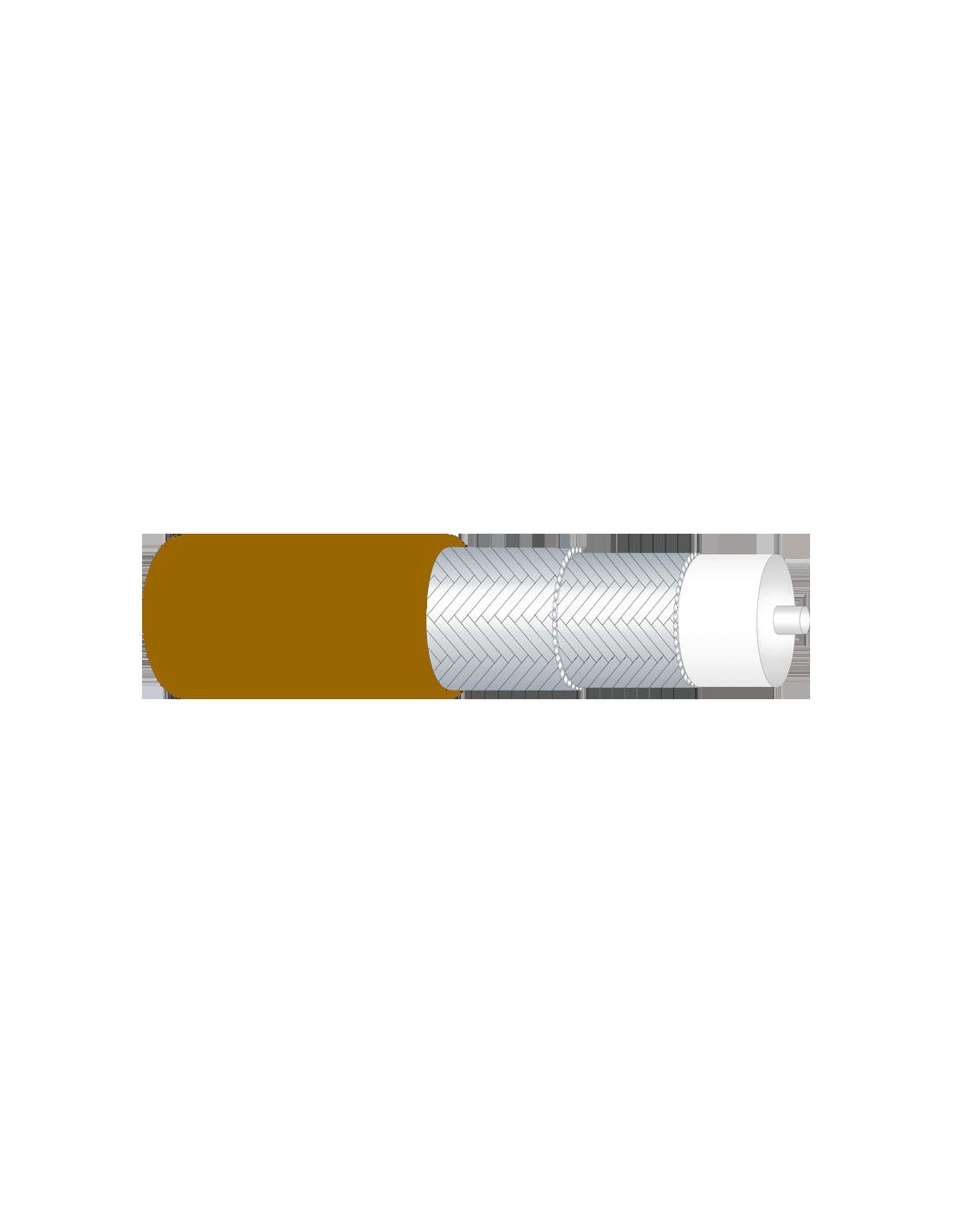

It is especially suited to environments with high interference levels, such as those near power cables, transformers, lighting dimmers or mobile phone signals. Its double shield, made of a polished copper/polyester tape and a copper braid with 95% coverage, offers low transfer impedance and minimal DC resistance, achieving over 110 dB attenuation against high, medium and low frequency electromagnetic signals.
With a nominal outer diameter of 5 mm and a weight of 45 kg/km, it is available with a brown PTC or CMR jacket, making it a reliable choice for OB vans, events and live productions.
Key features
