Data Cable NEO-CAT.6A Percon NEO-SMART6030/FCA
Percon
Data Cable NEO-CAT.6A Percon NEO-SMART6030/FCA

Data Cable NEO-CAT.6A Percon NEO-SMART6030/FCA

NEO-SMART6030/FCA

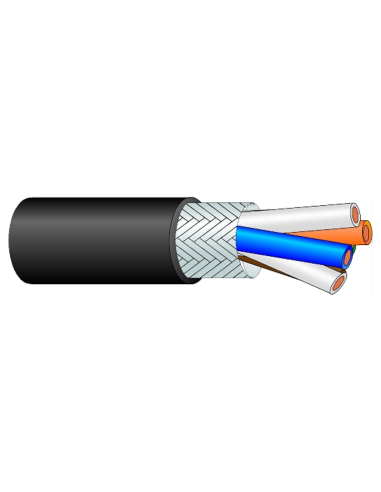

4-pair Cat 6A S/FTP data cable, 500 MHz, with 23 AWG oxygen-free copper conductors, tinned copper braid and Euroclass Fca according to EN 50575. For LAN networks and mobile applications.

The Percon NEO-SMART6030/FCA, from the NEO Cat 6A series, is an S/FTP data cable for linking computers and IT devices in local area networks (LAN). With a bandwidth of 500 MHz, it is ready for high-speed networks and supports PoE+ power (IEEE 802.3at).

Its four pairs of solid 23 AWG (0.57 mm) oxygen-free copper (Cu OFC) conductors with PEX insulation ensure stable data transmission. The S/FTP construction, with foil shielding on the pairs and an overall tinned copper braid, provides highly effective protection against interference and crosstalk, ideal in electrically noisy environments such as OB vans and events.

With a nominal outer diameter of 8.5 mm, a weight of 94 kg/km, a black PTC or NBR jacket and Euroclass Fca according to EN 50575, it complies with the main structured cabling standards: ISO/IEC 11801, EN 50173-1, EN 50288-11-1, IEC 61156-5 and TIA/EIA-568-C.2.

Key features

  • Cat 6A S/FTP data cable, 4 pairs, 500 MHz
  • Solid oxygen-free copper (Cu OFC) conductors, 23 AWG (0.57 mm)
  • PEX insulation
  • Foil shielding on the pairs + overall tinned copper braid (S/FTP)
  • PoE+ compatible (IEEE 802.3at)
  • Standards: ISO/IEC 11801, EN 50173-1, EN 50288-11-1, IEC 61156-5, TIA/EIA-568-C.2
  • Designed for mobile use
  • Black PTC or NBR jacket
  • Euroclass Fca according to EN 50575
  • Nominal outer diameter: 8.5 mm · Weight: 94 kg/km

Product Details

Nº conductors
4 Pairs
Conductor
Cu OFC
AWG
23
Section (mm2)
0.28
Insulation
PEX
Shield
Braided CuSn
Nominal Size
8.5
Weight (Kg)
94
Colour
Black
Use
mobile installation
Jacket
PTC NBR
NEO-SMART6030/FCA
