Data Cable NEO-CAT.6A Percon NEO-CAT6006
Percon
Data Cable NEO-CAT.6A Percon NEO-CAT6006

Data Cable NEO-CAT.6A Percon NEO-CAT6006

NEO-CAT6006HF/B2CA

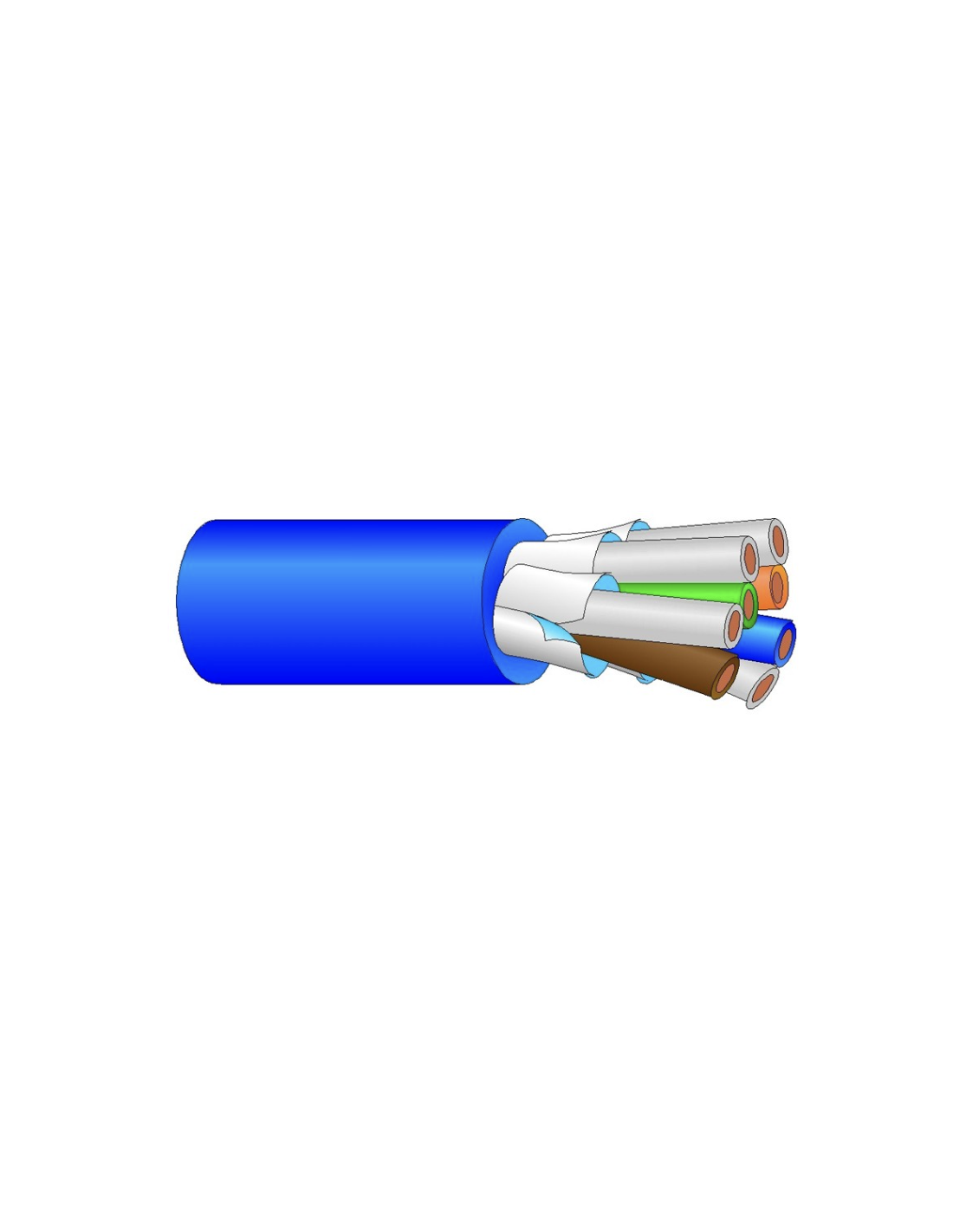

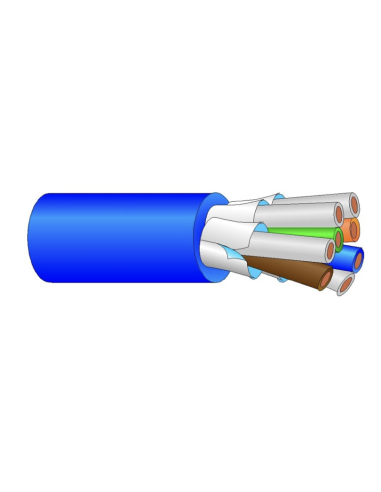

4-pair Cat 6A U/FTP 500 MHz data cable with 23 AWG solid oxygen-free copper conductors and individual pair shielding, for LAN networks in fixed installations. Euroclass Eca according to EN 50575.

The Percon NEO-CAT6006, from the NEO Cat 6A series, is a 500 MHz U/FTP data cable for linking computers and IT devices in high-performance local area networks (LAN). It supports PoE+ power (IEEE 802.3at).

Its four pairs of solid 23 AWG oxygen-free copper (Cu OFC) conductors with PEX insulation ensure stable, high-performance data transmission. Each pair is protected by an Al-PET shield (U/FTP construction), reducing crosstalk and interference.

With a weight of 47 kg/km, a black PTC jacket and Euroclass Eca according to EN 50575, it is ideal for fixed structured cabling installations in offices, technical rooms and data centres. It complies with ISO/IEC 11801, EN 50173-1, IEC 61156-5 and TIA/EIA-568-C.2.

Key features

  • Cat 6A U/FTP data cable, 4 pairs, 500 MHz
  • Solid oxygen-free copper (Cu OFC) conductors, 23 AWG
  • PEX insulation
  • Al-PET shield on each pair (U/FTP)
  • PoE+ compatible (IEEE 802.3at)
  • Standards: ISO/IEC 11801, EN 50173-1, IEC 61156-5, TIA/EIA-568-C.2
  • Designed for fixed installation
  • Black PTC jacket
  • Euroclass Eca according to EN 50575
  • Weight: 47 kg/km
COLOUR
  • White
  • Black
  • Blue
NORMATIVA
CUBIERTA

Product Details

Nº conductors
4 x 2
Conductor
Cu OFC
AWG
23
Stranding
Solid
Insulation
PEX
Shield
Al - Pet
Weight (Kg)
47
Colour
Black
Use
fixed installation
Jacket
PTC
Composition
U/FTP RÍGIDO
NEO-CAT6006HF/B2CA
