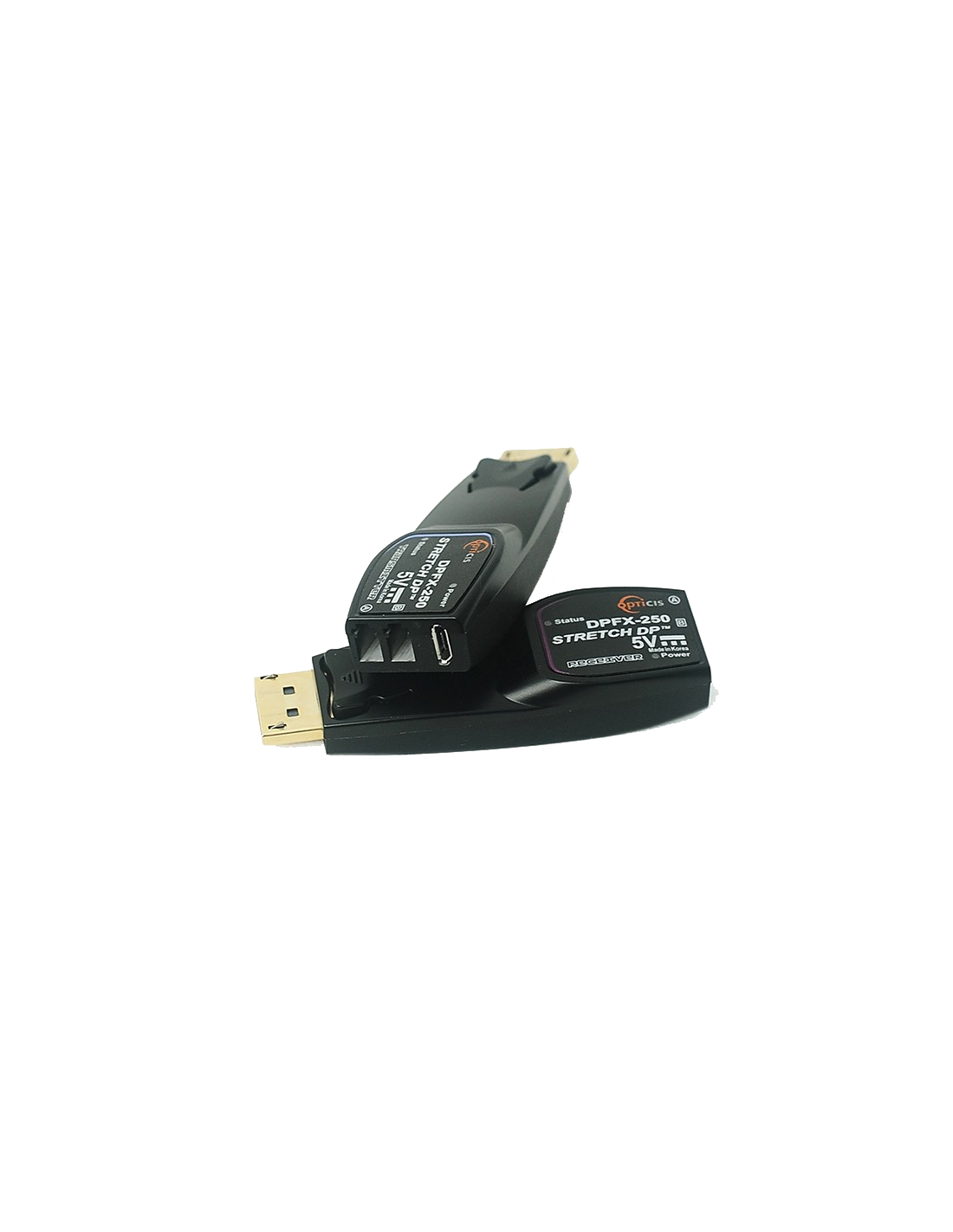

4K Two Fiber DisplayPort 1.2 Extender OPTICIS-DPFX-250-TR

4K Two Fiber DisplayPort 1.2 Extender OPTICIS-DPFX-250-TR

4K Two Fiber DisplayPort 1.2 Extender OPTICIS-DPFX-250-TR

4K Two Fiber DisplayPort 1.2 Extender OPTICIS-DPFX-250-TR

4K Two Fiber DisplayPort 1.2 Extender OPTICIS-DPFX-250-TR

Reference OPTICIS-DPFX-250-TR

Optical DisplayPort extender, DPFX-250-TR is designed compact enough to be fitted into various installation environments with two (2) LC fibers connection.

The transmitter and receiver set, DPFX-250-TR enables to transmit 4K (4096x2160) at 60Hz signal up to 200m (656feet) over two (2) LC multi-mode fibers, avoiding any tricks like scaling or data compression for lessening a burden of data transmission.

Between the transmitter and the receiver, pure fiber connection by two (2) LC fibers connector gives clean, secure and easy installation with a perfect electrical isolation and no electrical hazard. The DPFX-250-TR can be operated by USB power without external DC power adapter by plugging the supplied USB to DC plug cables to each module.

Product Details

Brand

ISBN OPTICIS-DPFX-250-TR

Description

FEATURES:

• Admite los estándares 4K y DisplayPort 1.2

• Extiende 4K (4096x2160) a 60Hz

• Transmite datos DP hasta 200 m (656 pies) a través de dos (2) fibras multimodo LC (50/125 um).

• Ofrece una velocidad de datos total de 21,6 Gbps (5,4 Gbps por carril)

• Admite DP de modo dual (DP++)

• Admite canal auxiliar /l²C a través de fibra

• Soporta transporte Multi-Stream

• El diseño compacto permite la conexión directa a la pantalla DP.

• Plug & Play

• Cambio automático de energía

• Seguridad de datos con emisión EMI insignificante.

• Certifica los estándares FCC y CE para emisión EMI/RFI
