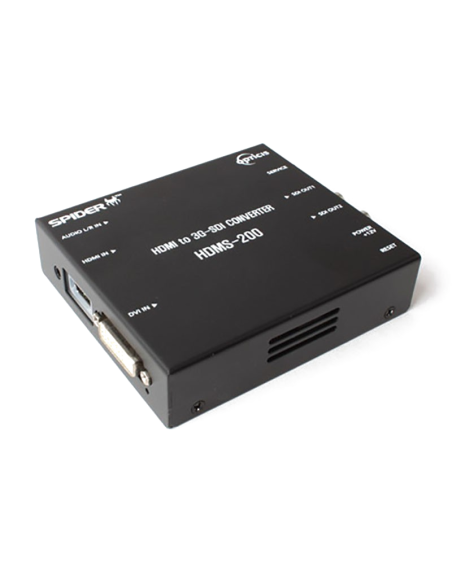

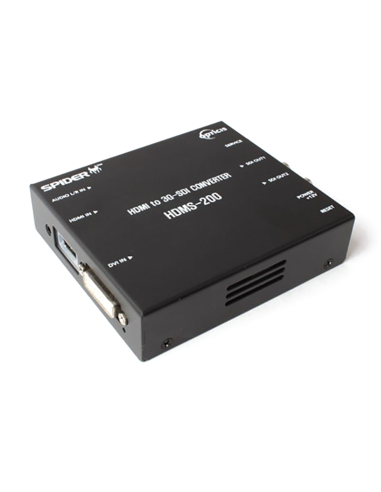

HDMI and DVI to 3G-SDI Video Converter OPTICIS-HDMS-200
Opticis
HDMI and DVI to 3G-SDI Video Converter OPTICIS-HDMS-200

HDMI and DVI to 3G SDI Video Converter OPTICIS-HDMS-200

OPTICIS-HDMS-200

OPTICIS new mini converter, HDMS-200 converts all HDMI1.3 and DVI signals up to 1080p to the corresponding SD, HD and 3G-SDI formats complied with SMPTE standard with embedded audio or analog audio in application for broadcasting or a professional video producing.

Product Details

OPTICIS-HDMS-200

Description

FEATURES:

• Supports multi-rate SDI formats
   - SMPTE 125M: SD : 601*625i (576_ PAL), SD : 601*525i (486_ NTSC)
   - SMPTE 296M: HD : 1280*720p (60/59.94/50)
   - SMPTE-274M: HD : 1920*1080p (30/29.97/25/24/23.98)
                          HD : 1920*1080i (60/59.94/50)
   - SMPTE-425M: 3G : 1920*1080p(60/59.94/50)
• Equipped one (1) HDMI1.3 input and one (1) DVI input
• Equalizes two (2) 3G-SDI outputs
• Input status LED
• Input voltage range: +5~24V
• Dimensions (WDH): 106.6 x 96 x 26.2mm
• Weight: 0.20Kg
