Balanced, shielded digital audio multipair cable with very low capacitance and 110 Ω characteristic impedance. 100% aluminium overall shield plus individual shield on each pair, for fixed installation.

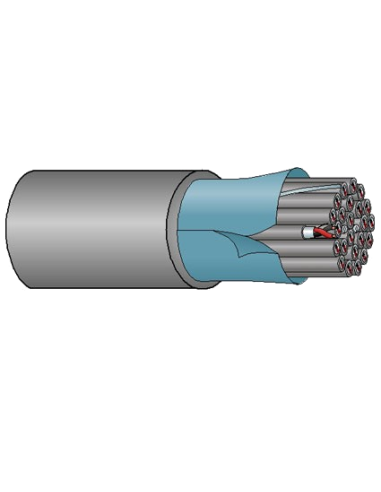

The Percon AK 21132 AL PTC FCA is a balanced digital audio multipair cable with 110 Ω characteristic impedance, suitable for AES/EBU signal transmission in fixed installations. Its very low capacitance preserves digital signal integrity over long runs.
Its 0.22 mm² (24 AWG) tinned oxygen-free copper (CuSn OFC) conductors with PEX insulation ensure stable, reliable transmission. It combines a 100% coverage aluminium overall shield with an individual Al-PET shield and drain wire on each pair (cut-and-solder type), protecting every signal against interference and crosstalk while allowing fast termination.
With 32 pairs in a single cable, a nominal outer diameter of 27.7 mm, a weight of 677 kg/km and a grey PTC jacket, it is the high-density solution for trunk runs between technical rooms, studios, control rooms and data centres in broadcast installations.
