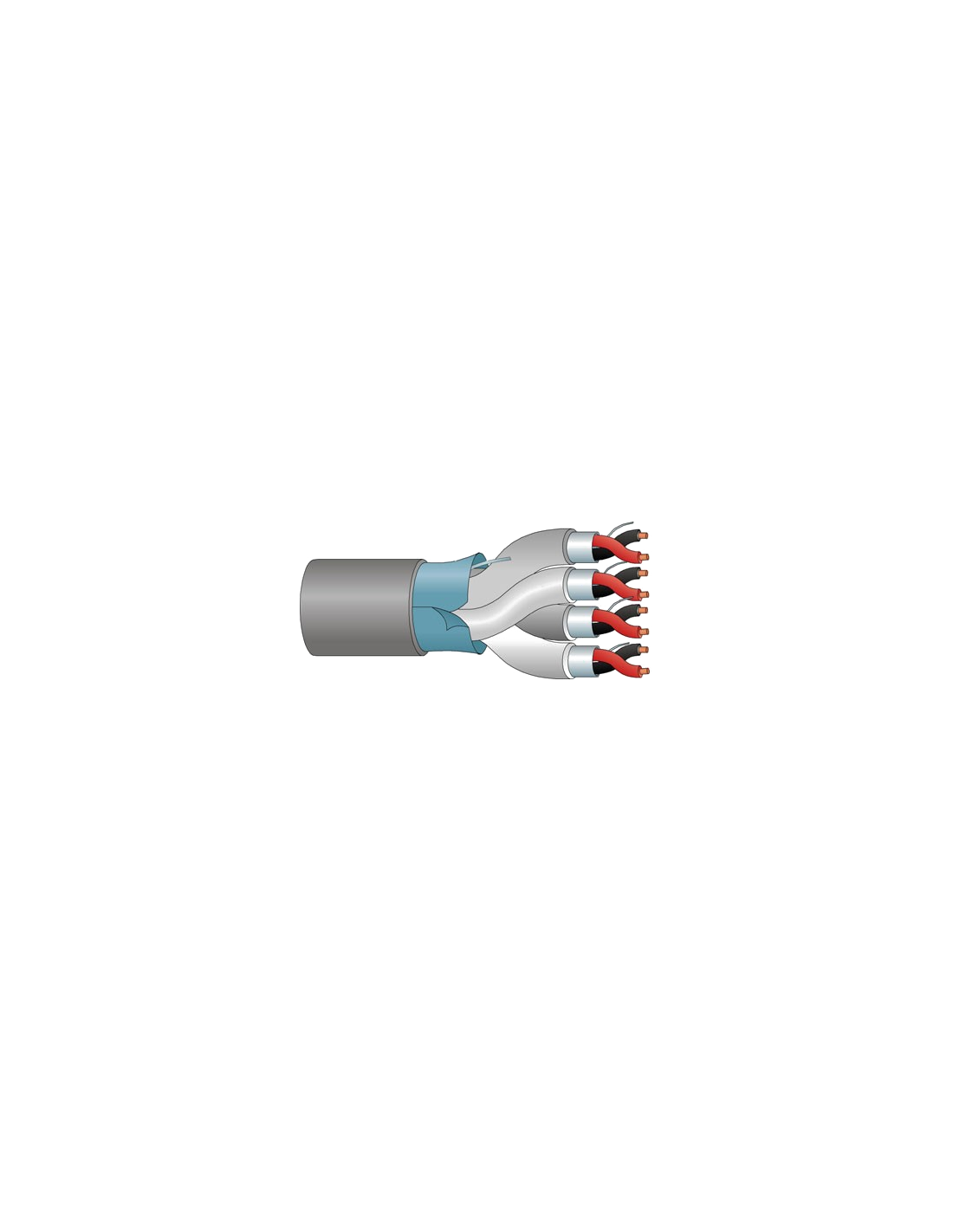

Audio Cable Percon AK 2114 AL
The Percon AK 2114 AL audio cable carries 4 AES/EBU (AES3) digital audio signals in a single cable. It is designed for fixed cabling in radio and television studios, control rooms, technical facilities and professional AV installations.
Each pair has its own individual shield, and the whole assembly is protected by a 100% aluminium overall shield. This double protection prevents crosstalk between channels and external interference. Its 110-ohm characteristic impedance, as required by the AES/EBU standard, and its very low capacitance ensure error-free transmission, even over long runs.
The AWG 24 conductors and the cut-and-solder individual pair shields make it easy to prepare and terminate each channel on patch panels, racks and multipin connectors.
Applications:
- Fixed cabling between technical rooms, studios and control rooms
- Connection of mixing consoles, matrices and audio processors
- Multichannel runs in technical facilities and racks
- Professional AV installations in auditoriums and event venues
Digital shielded balanced multipair audio cable with very low capacitance and 110 ohms characteristic impedance. Fixed installation. General shield 100% Aluminum and individual shield each pair (cut and solder type).
