Data Cable RK Series Cable Percon TVL 1300 FCA
Percon
Data Cable RK Series Cable Percon TVL 1300 FCA

Data Cable RK Series Cable Percon TVL 1300 FCA

TVL 1300 FCA

RK series cable combining a video coaxial and shielded balanced conductors, designed for control applications such as Sony RCP, Panasonic ROP, Bosch DCN or Bang & Olufsen. Class Fca, for mobile use.

The Percon TVL 1300 FCA, from the RK series, is a cable designed specifically for control applications such as Sony RCP and Panasonic ROP remote panels, Bosch DCN conference systems and Bang & Olufsen equipment control.

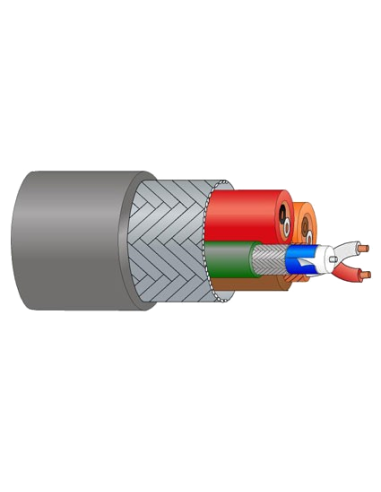

It includes one video coaxial (VK 2 type), with a 0.125 mm² (26 AWG) solid tinned copper (CuSn) conductor, foamed high-density polyethylene (FHDPE) insulation and a double shield of Al-PET tape and tinned copper braid; and three stranded 0.22 mm² (24 AWG) tinned copper conductors with PTC insulation and a spiral copper shield for high flexibility.

With a nominal outer diameter of 8.5 mm, a weight of 116 kg/km, a black PTC jacket and Fca reaction-to-fire classification, it is a compact, reliable cable for OB vans, studios and live productions.

Key features

  • RK series: video coaxial + shielded balanced conductors
  • For Sony RCP, Panasonic ROP, Bosch DCN and Bang & Olufsen control
  • Coaxial (VK 2 type): solid CuSn, 0.125 mm² (26 AWG), FHDPE insulation, Al-PET + tinned copper braid shield
  • Control conductors: stranded CuSn, 0.22 mm² (24 AWG), PTC insulation, spiral copper shield
  • Designed for mobile use
  • Black PTC jacket
  • Fca reaction-to-fire classification
  • Nominal outer diameter: 8.5 mm · Weight: 116 kg/km

Product Details

Nº conductors
1 | 3
Conductor
Cu Sn | Cu Sn
AWG
26 | 24
Stranding
Solid | 7/32
Section (mm2)
0.125 | 0.22
Insulation
FHDPE | PTC
Shield
AL-Pet + CuSn | Cu (spir)
Nominal Size
8.5
Weight (Kg)
116
Colour
Black
Use
mobile installation
Jacket
PTC
Composition
Coax Vídeo (VK2) + Balanced Pair
0465/FCA
