RK 4381 HF

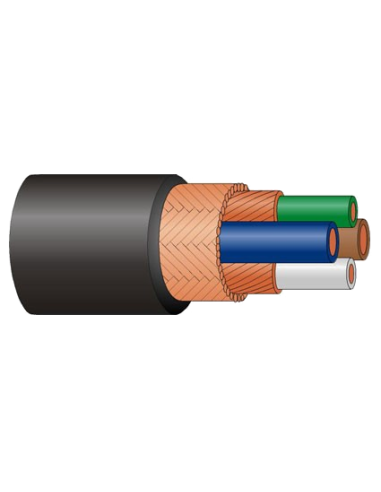

Percon RK 4381 HF control cable: shielded signal and power in one halogen-free cable for Bosch DCN

In a conference system, every unit needs reliable signal and power, often in rooms with strict safety requirements.
The RK 4381 HF integrates both functions in a single cable with a halogen-free jacket.

The Percon RK 4381 HF is a control cable designed specifically for Bosch DCN systems, as well as for Bang & Olufsen control applications, Sony RCP panels, Panasonic ROP panels and SMPTE 311M power. It combines a shielded signal pair with two larger 0.75 mm² conductors, so a single cable handles the connection between central units and delegate units, panels or cameras.

The signal pair, made of tinned copper with expanded polyethylene (PEX) insulation, is protected by a copper spiral shield that isolates it from interference. The two 0.75 mm² stranded copper conductors with PTC insulation provide the right section for power. Everything is enclosed in a halogen-free FRLSZH jacket, making it suitable for conference rooms, auditoriums, studios and public spaces.

Key benefits

  • Signal and power in a single cable: shielded pair and 2 × 0.75 mm² conductors in the same cable.
  • Signal pair with PEX insulation and copper spiral shield: transmission protected against interference.
  • 0.75 mm² stranded copper conductors (24 strands): the right section for power, with good flexibility.
  • Halogen-free FRLSZH jacket: greater safety in conference rooms and public spaces.
  • Compatible with Bosch DCN, Sony RCP, Panasonic ROP, Bang & Olufsen and SMPTE 311M: one cable for different professional systems.

Product Details

Nº conductors
2 | 2
Conductor
CuSn | Cu
AWG
28 | 20
Stranding
Solid | 24/32
Section (mm2)
0,07 | 0,75
Insulation
PEX | PTC
Shield
Cu Spiral | -
Nominal Size
6.1
Weight (Kg)
72
Colour
Black
Use
mobile installation
Jacket
FRLSZH
Composition
Shielded Signal | Unshielded Signal
Application
DCN Bosch
0814HF
