Cable hybrid Furukawa SMPTE 2SM-9.2mm ARIB

SMPTE 2SM-9.2mm ARIB

Furukawa SMPTE hybrid cable, ARIB version, combining 2 single-mode optical fibres with power and control conductors, for simultaneous video, audio and control transmission between camera and base station. For mobile use.

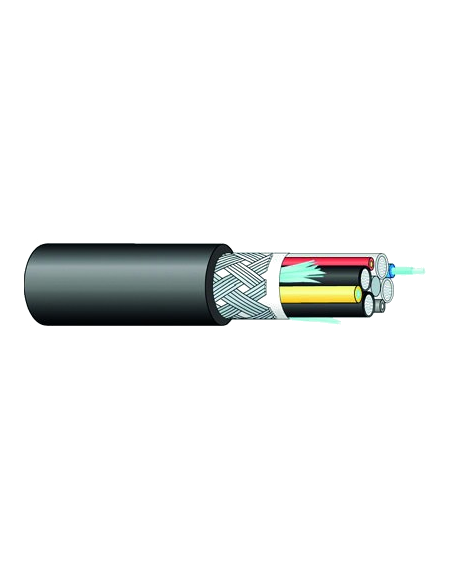

The Furukawa SMPTE 2SM-9.2mm ARIB is a hybrid cable designed for camera applications, combining single-mode optical fibre and control and signal conductors in a single cable. It is used in professional video production for simultaneous transmission of video, audio and control between the camera and its base station.

It includes two 9/125 µm single-mode optical fibres; four 0.53 mm² (20 AWG) tinned copper (CuSn) power conductors and two 0.18 mm² tinned copper control conductors, all stranded and with HDPE insulation; and a galvanised steel strength member that protects the fibres against mechanical stress during deployment and recovery.

With a nominal outer diameter of 9.2 mm and a black PTC jacket, it is a robust, easy-to-handle cable for OB vans, sports events and live productions.

Key features

  • SMPTE hybrid cable for broadcast cameras, ARIB version
  • 2 × 9/125 µm single-mode optical fibres
  • 4 CuSn power conductors, 0.53 mm² (20 AWG), HDPE insulation
  • 2 CuSn control conductors, 0.18 mm², HDPE insulation
  • Galvanised steel strength member
  • Designed for mobile use
  • Black PTC jacket
  • Nominal outer diameter: 9.2 mm

Product Details

Nº conductors
2|4|2|1
Conductor
Single mode|CuSn|CuSn|Galvanized Steel
AWG
9.3/125 micron | 20 | 24 | 16
Stranding
- |21/33|7/33|19/28
Section (mm2)
- |0.53|0.18|1.34
Insulation
PTC | HDPE | HDPE | PTC
Shield
CuSn | - |-|-
Nominal Size
9.2
Use
mobile installation
Jacket
PTC
Colors
Black
Composition
Fiber|Power Cables|Control Cables|Stranded Steel
