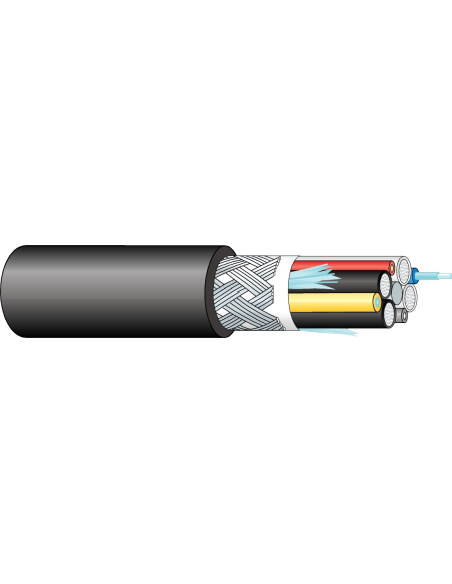

Hybrid Cable SMPTE Percon 0535
Percon
Hybrid Cable SMPTE Percon 0535

Hybrid Cable SMPTE Percon 0535

0535HF/CCA

SMPTE hybrid cable with 2 single-mode optical fibres and electrical power and control conductors, for fixed professional camera installations. Halogen-free jacket.

The Percon 0535 is an SMPTE hybrid cable designed for fixed professional broadcast camera installations. It combines optical fibre and electrical conductors in a single cable, carrying high-resolution video over fibre together with power and control signals between the camera and its base station.

It includes two 9/125 µm single-mode optical fibres, four 20 AWG conductors, two 24 AWG conductors and one 16 AWG conductor.

With a nominal outer diameter of 9.2 mm and a black FRLSZH jacket — flame retardant, low smoke and zero halogen — it is a safe, reliable solution for permanent camera cabling in studios, sets, auditoriums and technical rooms.

Key features

  • SMPTE hybrid cable for professional cameras
  • 2 × 9/125 µm single-mode optical fibres
  • Electrical conductors: 4 × 20 AWG, 2 × 24 AWG and 1 × 16 AWG
  • Designed for fixed installation
  • Black FRLSZH jacket (flame retardant, low smoke, zero halogen)
  • Nominal outer diameter: 9.2 mm
COLOUR
  • Black
NORMATIVA
CUBIERTA

Product Details

Nº conductors
2|4|2|1
AWG
9.3/125 micron | 20 | 24 | 16
Nominal Size
9.2
Use
fixed installation
Jacket
FRLSZH
Colors
Black
0535HF/CCA
