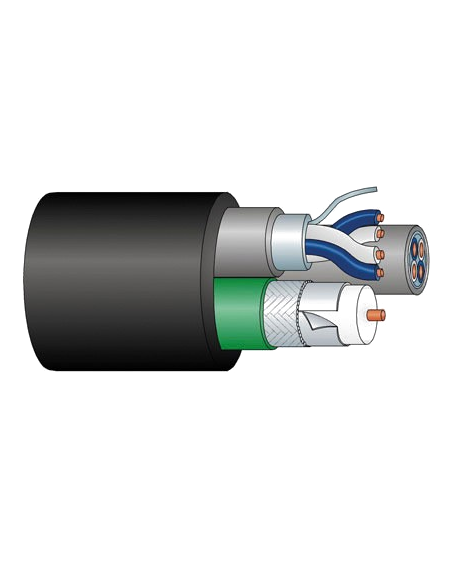

Digital Multicore Cable Percon TVL 76420/6
TVL range digital multicore cable combining a video coaxial and 2 audio star-quads in a single run. Ideal for mobile applications.
The Percon TVL 76420/6 is a TVL range digital multicore cable that brings video and audio together in a single run, simplifying cabling and speeding up set-up in mobile applications.
It includes one video coaxial (VK 6 type), with a 0.5 mm² (20 AWG) solid copper (Cu) conductor, foamed high-density polyethylene (FHDPE) insulation and a double shield of Al/PET/Al tape and tinned copper braid; and two star-quads for audio, with 0.2 mm² (24 AWG) oxygen-free copper (Cu OFC) conductors, PEX insulation and an Al-PET shield, providing high immunity to interference.
With a nominal outer diameter of 13.7 mm, a weight of 220 kg/km and a black PTC jacket, it is a robust solution for OB vans, cameras, events and live productions.
Key features
- TVL digital multicore: 1 video coaxial + 2 audio star-quads
- Coaxial (VK 6 type): solid Cu, 0.5 mm² (20 AWG), FHDPE insulation, Al/PET/Al tape + tinned copper braid shield
- Audio star-quads: Cu OFC, 0.2 mm² (24 AWG), PEX insulation, Al-PET shield
- Designed for mobile use
- Black PTC jacket
- Nominal outer diameter: 13.7 mm · Weight: 220 kg/km
