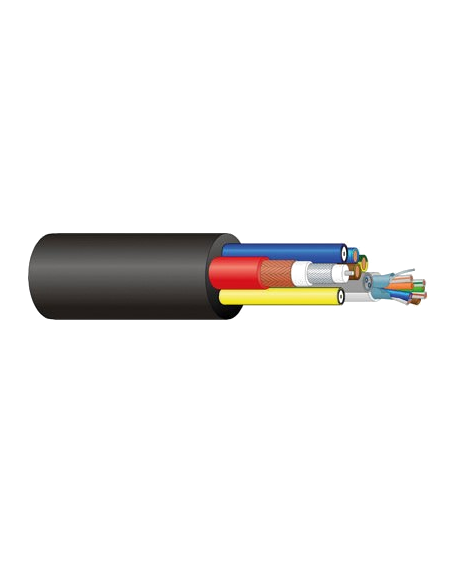

Digital Multicore Cable Percon TVL 12131/6
Percon
Digital Multicore Cable Percon TVL 12131/6

Digital Multicore Cable Percon TVL 12131/6

TVL 12131/6

TVL range digital multicore cable combining video, power, audio and data in a single run: 2 video coaxials, 3 × 2.5 mm² power conductors, an audio star-quad and a Cat 5e cable. Ideal for mobile applications.

The Percon TVL 12131/6 is a TVL range digital multicore cable that brings video, power, audio and data together in a single run, simplifying cabling and speeding up set-up in mobile applications.

It includes two video coaxials (VK 6 type), each with a 0.5 mm² (20 AWG) solid copper (Cu) conductor, foamed high-density polyethylene (FHDPE) insulation and a double shield of Al/PET/Al tape and tinned copper braid; three stranded 2.5 mm² (14 AWG) copper power conductors with PTC insulation; one star-quad for audio, with 0.2 mm² (24 AWG) oxygen-free copper (Cu OFC) conductors, PEX insulation and an Al-PET shield with drain wire; and one Cat 5e data cable with 24 AWG solid copper conductors, PE insulation and an Al-PET shield.

With a nominal outer diameter of 23 mm, a weight of 640 kg/km and a black PTC jacket, it is a complete solution for OB vans, cameras, events and live productions.

Key features

  • TVL digital multicore: 2 video coaxials + 3 power + 1 audio star-quad + 1 Cat 5e
  • Coaxials (VK 6 type): solid Cu, 0.5 mm² (20 AWG), FHDPE insulation, Al/PET/Al tape + tinned copper braid shield
  • Power: stranded Cu, 2.5 mm² (14 AWG), PTC insulation
  • Audio star-quad: Cu OFC, 0.2 mm² (24 AWG), PEX insulation, Al-PET shield + drain wire
  • Data: Cat 5e, solid Cu, 24 AWG, PE insulation, Al-PET shield
  • Designed for mobile use
  • Black PTC jacket
  • Nominal outer diameter: 23 mm · Weight: 640 kg/km

Product Details

Nº conductors
2 | 3 | 1 | 1
Conductor
Cu | Cu | Cu OFC | Cu
AWG
20 | 14 | 24 | 24
Stranding
Solid | 48/30 | 25/38 | Solid
Section (mm2)
0.5 | 2.5 | 0.2 | 0.2
Insulation
FHDPE | PTC | PEX | PE
Shield
AL - Pet - Al + CuSn | - | AL - PET + Drain Wire | AL - Pet
Nominal Size
23
Weight (Kg)
640
Colour
Black
Use
mobile installation
Jacket
PTC
Composition
Coax Video (VK6) | Power cables | Star-Quad Audio | UTP cat 5e solid
0416-6
