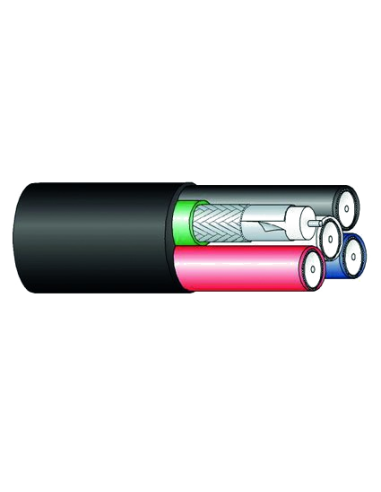

Video Cable Percon VK 5378 HF
Percon
Video Cable Percon VK 5378 HF

Video Cable Percon VK 5378 HF

VK 5378 HF

High-quality 5-coax multicoaxial cable for analogue and digital video in projection and IT: RGBHV and component video (RGB, Y/R-Y/B-Y, Y/Pb/Pr, Y/Cb/Cr), with halogen-free jacket.

The Percon VK 5378 HF is a high-quality multicoaxial cable for analogue and digital video, designed for typical video projection, IT and presentation room applications. Its five coaxials carry RGBHV signals and component video in all its formats: RGB, Y/R-Y/B-Y, Y/Pb/Pr and Y/Cb/Cr.

Each coaxial (0.8/3.7 mm) features a 0.5 mm² (20 AWG) solid copper (Cu) conductor and foamed high-density polyethylene (FHDPE) insulation, ensuring stable, low-loss signal transmission. Its double shield, made of an aluminium/polyester/aluminium tape and a tinned copper braid, protects each signal against interference.

With a nominal outer diameter of 18.6 mm, a weight of 375 kg/km and a black FRLSZH jacket — flame retardant, low smoke and zero halogen — it is the right choice for rooms, public buildings and spaces where fire safety is a priority.

Key features

  • 5-coax multicoaxial (0.8/3.7 mm)
  • For RGBHV and component video: RGB, Y/R-Y/B-Y, Y/Pb/Pr, Y/Cb/Cr
  • Solid copper (Cu) conductor, 0.5 mm² (20 AWG)
  • FHDPE insulation (foamed high-density polyethylene)
  • Double shield per coaxial: Al/PET/Al tape + tinned copper braid
  • Black FRLSZH jacket (flame retardant, low smoke, zero halogen)
  • Nominal outer diameter: 18.6 mm · Weight: 375 kg/km

Product Details

Conductor
Cu
AWG
20
Stranding
Solid
Section (mm2)
0.5
Insulation
FHDPE
Shield
AL - Pet - Al + CuSn |
Nominal Size
18.6
Weight (Kg)
375
Colour
Black
Nº of coaxials
0.8/3.7 x 5
Jacket
FRLSZH
0388HF
