Analog / Digital Multicore cable Percon TVL 0202 HF
Percon
Analog / Digital Multicore cable Percon TVL 0202 HF

Analog / Digital Multicore cable Percon TVL 0202 HF

TVL 0202 HF

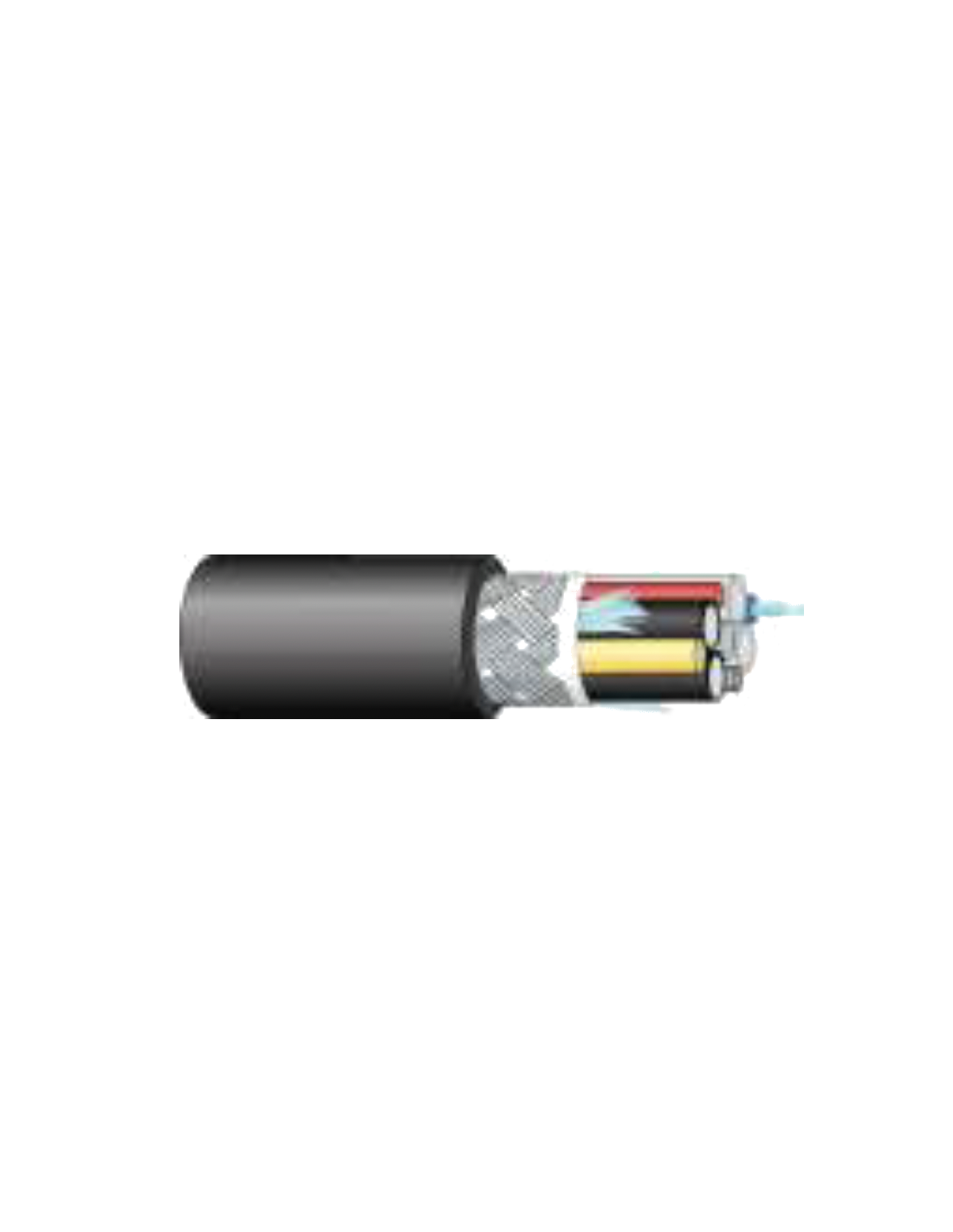

TVL range hybrid cable combining 2 audio lines and 2 FTP data cables in a single run, with halogen-free jacket. For mobile use.

The Percon TVL 0202 HF belongs to the TVL range of made-to-order cables: special cables that combine, according to each project’s needs, analogue or digital video, audio (twisted or quad), power and data cables, for professional installations.

This configuration brings together two audio lines and two FTP data cables, with a total of 4 pairs of 7-strand oxygen-free copper (Cu OFC) conductors and PEX insulation, ensuring clean, stable transmission of each signal.

With a nominal outer diameter of 14.6 mm, a weight of 251 kg/km and a black FRLSZH jacket — flame retardant, low smoke and zero halogen — it is a robust solution for OB vans, events and live productions.

Key features

  • TVL hybrid cable: 2 audio lines + 2 FTP data cables
  • 4 pairs of 7-strand oxygen-free copper (Cu OFC) conductors
  • PEX insulation
  • Made-to-order TVL range: configurable with video, audio, power and data
  • Designed for mobile use
  • Black FRLSZH jacket (flame retardant, low smoke, zero halogen)
  • Nominal outer diameter: 14.6 mm · Weight: 251 kg/km

Product Details

Nº conductors
4 Pairs
Conductor
Cu OFC
AWG
27
Stranding
7/35
Section (mm2)
0.34
Insulation
PEX
Nominal Size
14.6
Weight (Kg)
251
Colour
Black
Use
mobile installation
Jacket
FRLSZH
0490HF
