Camera Cable Percon Triax 8 Rígido
High-performance, highly durable triaxial cable for professional cameras, in a rigid version for fixed studio installations. Red polyurethane jacket.

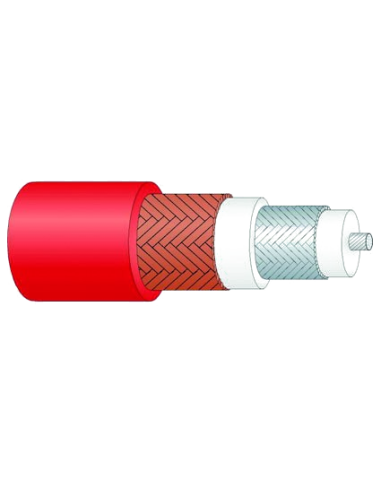

The Percon Triax 8 Rigid is a high-performance, highly durable triaxial cable for connecting professional broadcast cameras. Percon’s Triax range covers both mobile camera applications and fixed studio installations; this rigid version is designed for permanent cabling between studios, control rooms and technical areas.
Its 0.785 mm² (18 AWG) solid silver-plated copper (CuAg) centre conductor with foamed high-density polyethylene (FHDPE) insulation ensures low-loss signal transmission. The two concentric shields, in silver-plated copper and copper, form the triaxial structure that carries camera signal, return video, intercom and power between the camera and its camera control unit (CCU) over a single cable.
With a nominal outer diameter of 8.5 mm, a weight of 118 kg/km and a red polyurethane (PUR) jacket — abrasion resistant and easy to identify — it is a reliable, durable solution for fixed broadcast installations.
Key features
- Triaxial cable for professional broadcast cameras
- Rigid version for fixed studio installation
- Solid silver-plated copper (CuAg) centre conductor, 0.785 mm² (18 AWG)
- FHDPE insulation (foamed high-density polyethylene)
- Double shield: silver-plated copper + copper
- Red polyurethane (PUR) jacket
- Nominal outer diameter: 8.5 mm · Weight: 118 kg/km
