Audio Cable Percon AK 44015 PTC FCA

Audio Cable Percon AK 44015 PTC FCA

AK 44015 PTC FCA

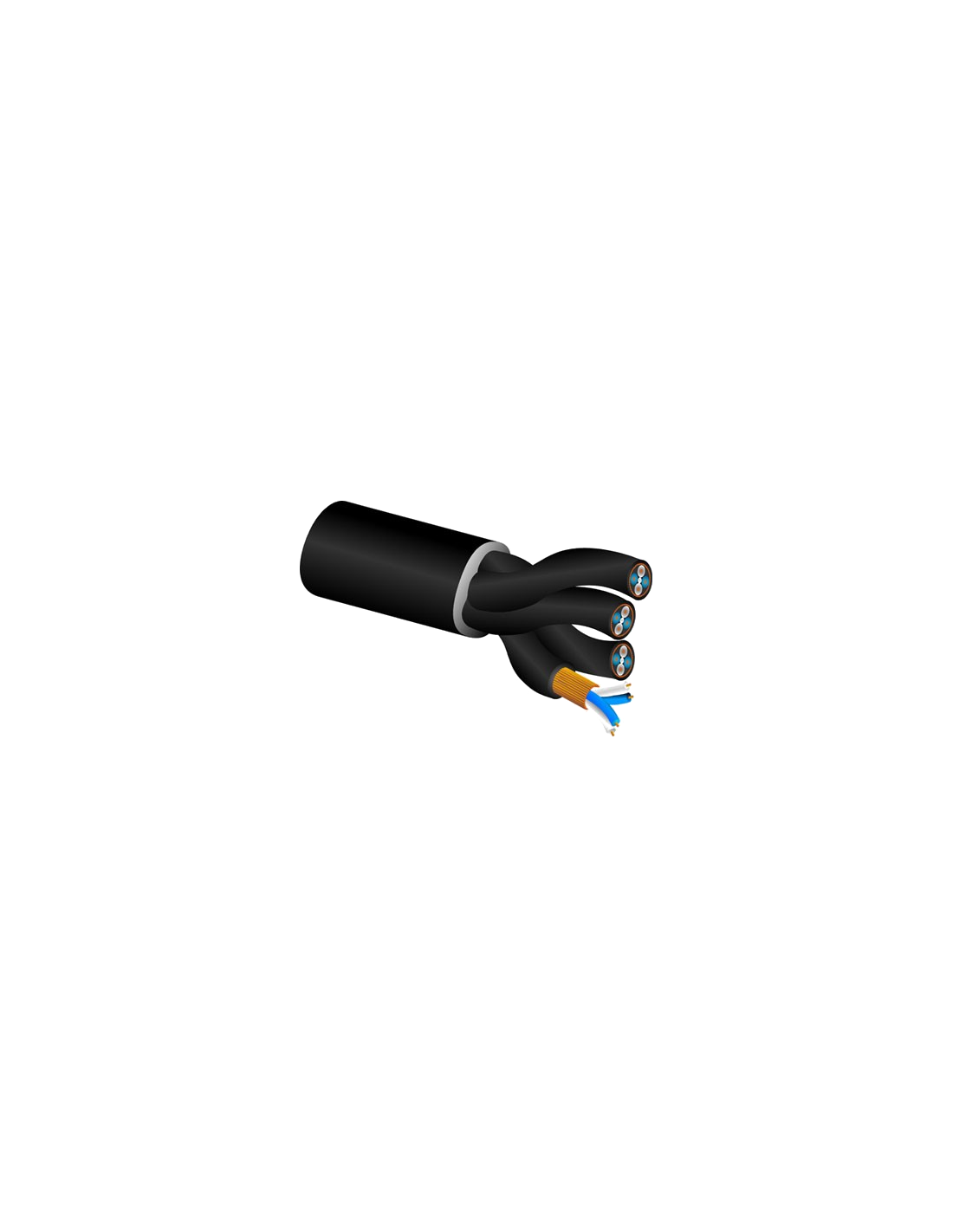

The Percon AK 44015 PTC FCA audio cable carries 4 balanced analogue audio signals in a single cable, with star-quad performance on every channel. It is a compact snake designed for OB vans, outside broadcast production, concerts, live events and temporary set-ups.

Each channel uses four conductors twisted in a quad formation instead of a standard pair. Opposite conductors are connected together, so interference picked up along the cable is almost completely cancelled at the receiving equipment. The result is an excellent signal-to-noise ratio (SNR) and strong immunity to hum and electromagnetic interference, even close to power cables, lighting or high-power equipment.

Each quad has its own copper spiral shield, which prevents crosstalk between channels while keeping the cable flexible, easy to coil and resistant to heavy use. It also meets Euroclass Fca according to EN 50575, under the European Construction Products Regulation (CPR), so it can also be used in permanent building installations covered by this regulation, according to the requirements of each project.

Applications:

  • Compact snakes between stage and control
  • OB vans and outside broadcast production
  • Concerts, live sound and live events
  • Temporary set-ups at trade fairs, sets and auditoriums

Product Details

Nº conductors
4 Quads
Conductor
Cu OFC
AWG
28
Stranding
7/36
Section (mm2)
0.08
Insulation
PPEX
Shield
Cu Spiral
Nominal Size
10.2
Weight (Kg)
148
Colour
Black
Use
mobile installation
Jacket
PTC
0282PTC/FCA
