Audio Cable Percon AK 164015 AL HF CCA
Percon
Audio Cable Percon AK 164015 AL HF CCA

Audio Cable Percon AK 164015 AL HF CCA

AK 164015 AL HF CCA

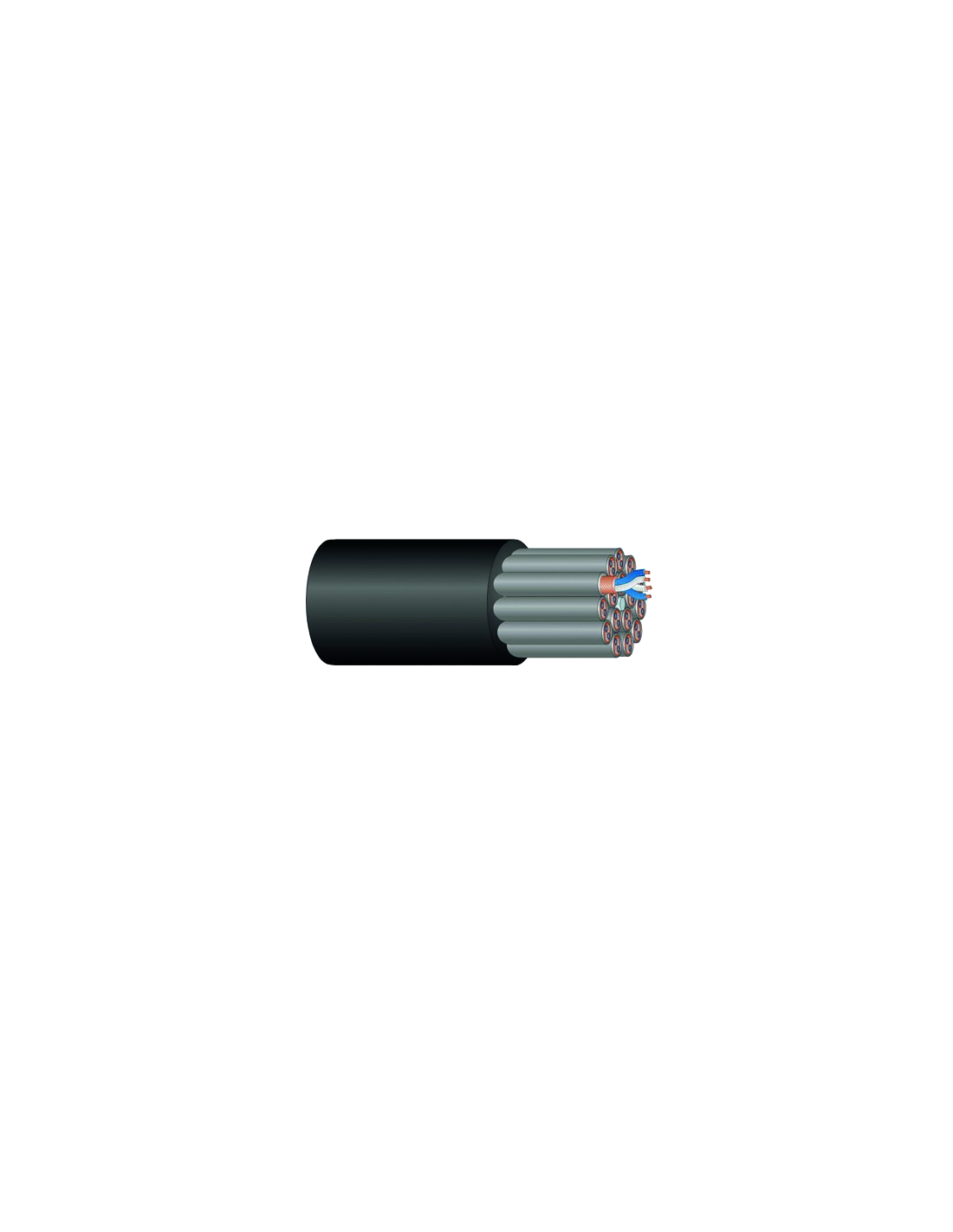

The Percon AK 164015 AL HF CCA audio cable carries 16 balanced analogue audio signals in a single cable, with star-quad performance on every channel. It is designed for fixed multichannel cabling in buildings with demanding fire safety requirements: theatres, auditoriums, convention centres, stations, radio and television studios and other public venues.

Each channel uses four conductors twisted in a quad formation instead of a standard pair. Opposite conductors are connected together, so interference picked up along the cable is almost completely cancelled at the receiving equipment. The result is an excellent signal-to-noise ratio (SNR) and strong immunity to hum and electromagnetic interference.

It meets Euroclass Cca according to EN 50575, under the European Construction Products Regulation (CPR), a class designed for projects with more demanding reaction-to-fire requirements. Its halogen-free jacket does not release corrosive or toxic gases in the event of fire, protecting both people and equipment.

Each quad has its own individual shield, and the whole assembly is protected by a 100% aluminium overall shield, which prevents crosstalk between channels. The cut-and-solder individual shields make it easy to prepare and terminate each channel on patch panels, racks and multipin connectors.

Applications:

  • Fixed audio cabling in theatres, auditoriums and convention centres
  • Public buildings and public venues
  • Technical facilities and radio and television studios
  • Projects that require Euroclass Cca and halogen-free cables

Product Details

Nº conductors
16 Quads
Conductor
Cu OFC
AWG
24
Stranding
25/38
Section (mm2)
0.20
Insulation
PEX
Shield
Al-PET +Drain Wire
Nominal Size
23.5
Weight (Kg)
467
Colour
Black
Use
fixed installation
Jacket
FRLSZH
0289HF/CCA
