- Nº conductors
- 1 | 1 | 3
- Conductor
- Cu | Cu OFC | Cu
- AWG
- 20 | 24 | 16
- Stranding
- Solid | 25/38 | 28/30
- Section (mm2)
- 0.5 | 0.2 | 1.5
- Insulation
- FHDPE | PEX | PTC
- Shield
- AL - Pet - Al + CuSn | AL-Pet | -
- Nominal Size
- 18.1
- Weight (Kg)
- 250
- Colour
- Black
- Use
- mobile installation
- Jacket
- PTC
- Composition
- Coax Video (VK6) | Star-Quad Audio | Power Cables

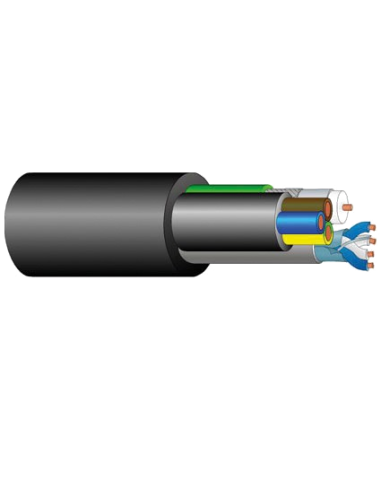

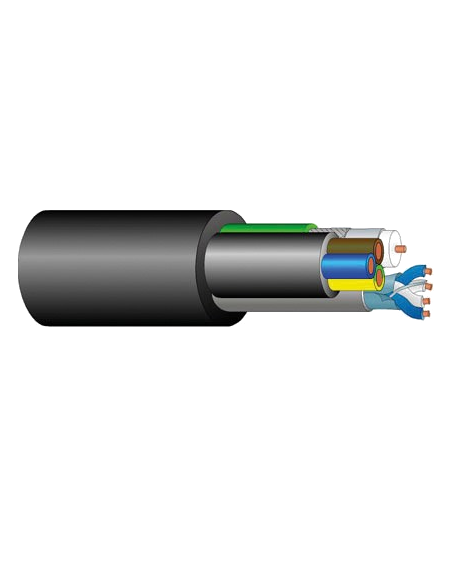

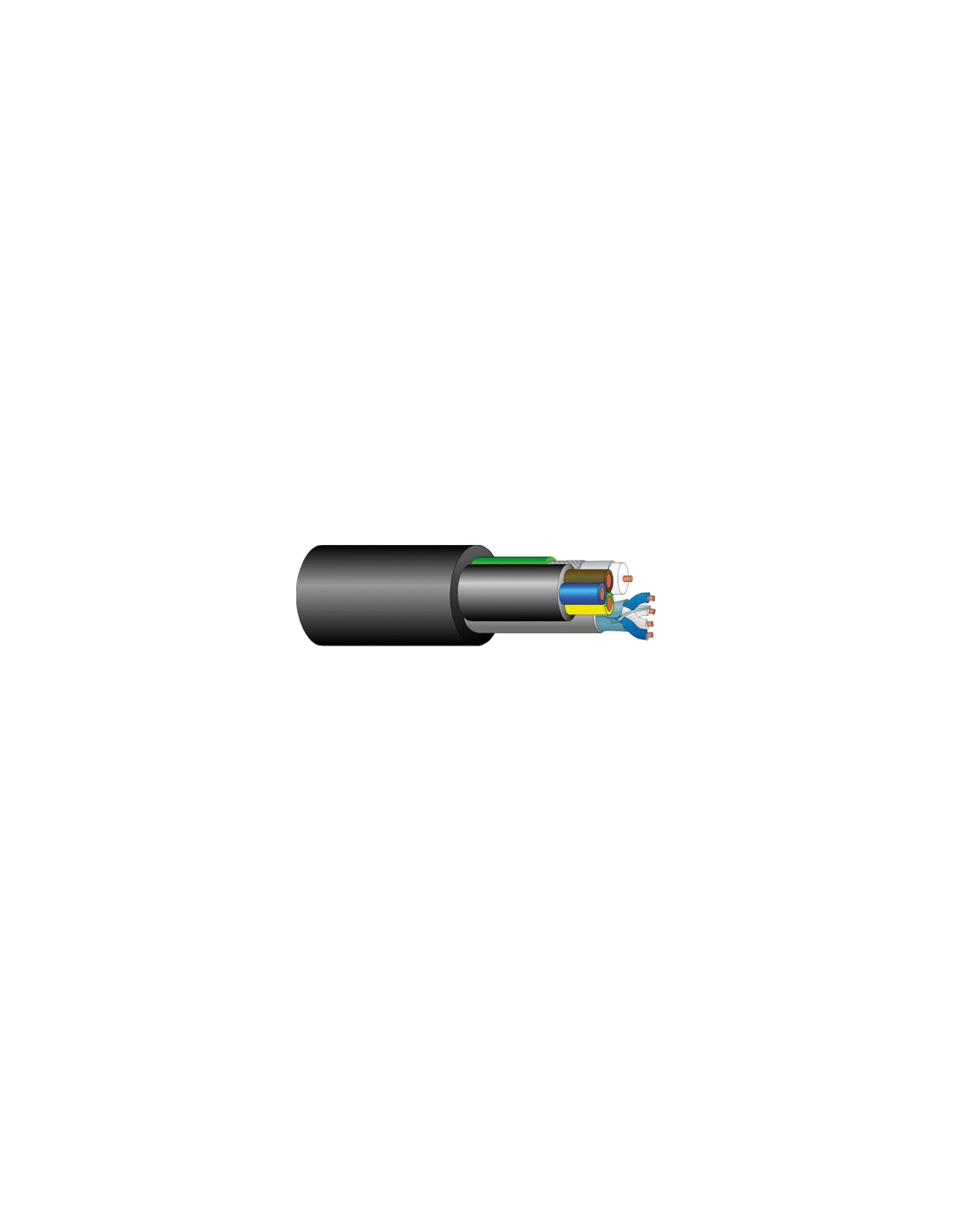

Digital Multicore Cable Percon TVL 1110-680 FCA
TVL range digital multicore cable combining a video coaxial, an audio star-quad and 3 × 1.5 mm² power conductors in a single run. Class Fca, ideal for mobile applications.
The Percon TVL 1110-680 FCA is a TVL range digital multicore cable that brings video, audio and power together in a single run, simplifying cabling and speeding up set-up in mobile applications.
It includes one video coaxial (VK 6 type), with a 0.5 mm² (20 AWG) solid copper (Cu) conductor, foamed high-density polyethylene (FHDPE) insulation and a double shield of Al/PET/Al tape and tinned copper braid; one star-quad for audio, with 0.2 mm² (24 AWG) oxygen-free copper (Cu OFC) conductors, PEX insulation and an Al-PET shield; and three stranded 1.5 mm² (16 AWG) copper power conductors with PTC insulation.
With a nominal outer diameter of 18.1 mm, a weight of 250 kg/km, a black PTC jacket and Fca reaction-to-fire classification, it is a robust solution for OB vans, cameras, events and live productions.
Key features
- TVL digital multicore: 1 video coaxial + 1 audio star-quad + 3 power conductors
- Coaxial (VK 6 type): solid Cu, 0.5 mm² (20 AWG), FHDPE insulation, Al/PET/Al tape + tinned copper braid shield
- Audio star-quad: Cu OFC, 0.2 mm² (24 AWG), PEX insulation, Al-PET shield
- Power: stranded Cu, 1.5 mm² (16 AWG), PTC insulation
- Designed for mobile use
- Black PTC jacket
- Fca reaction-to-fire classification
- Nominal outer diameter: 18.1 mm · Weight: 250 kg/km
