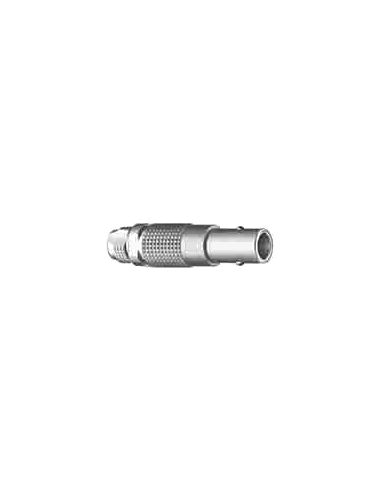

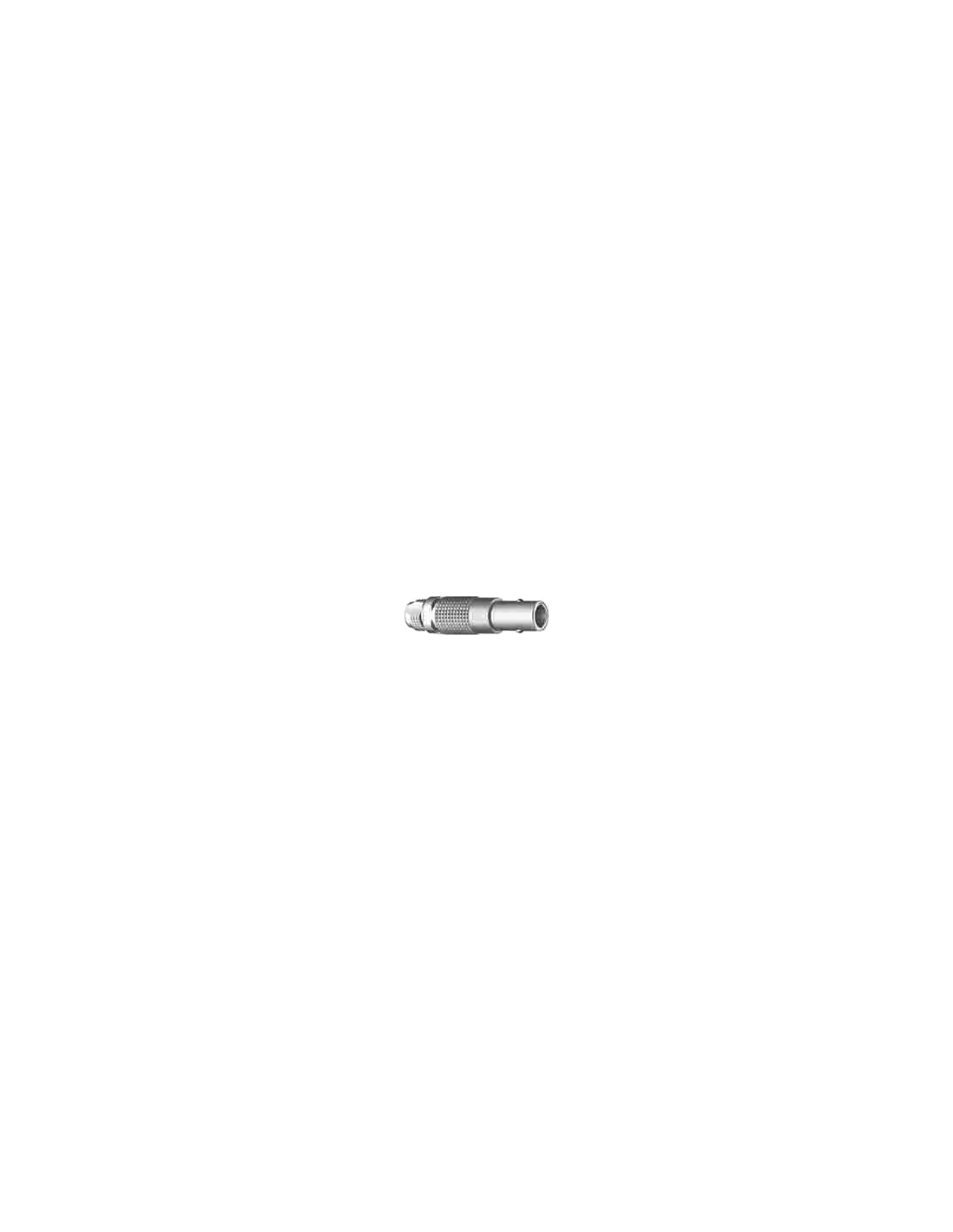

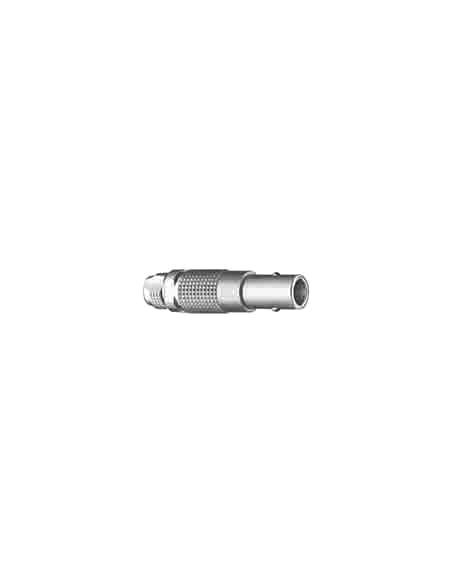

Connector Lemo LE-FFC.00.650CLAC35Z

LEMO FFC.00.650.CLAC35Z connector: 50 Ω triaxial push-pull connector for instrumentation and measurement

In instrumentation, measurement and RF signal transmission, the connector defines signal quality as much as the cable does.
The FFC.00.650.CLAC35Z delivers a 50 Ω triaxial connection in a miniature format with LEMO’s push-pull latching.

The LEMO FFC.00.650.CLAC35Z is a straight male cable-mount connector from the 00 NIM-CAMAC series, with a 50 Ω triaxial solder contact. Its push-pull system connects with a simple push and stays locked until the body is pulled back, preventing accidental disconnection. The triaxial configuration adds a second shield that improves signal isolation against interference.

Its brass body with PEEK insulator is rated for a temperature range from -55 °C to +250 °C, and the cable is secured by a collet for firm retention. The black POM outer shell with flats on the latch sleeve gives a better grip when mating and unmating. It is well suited to measurement equipment, laboratory instrumentation and 50 Ω signal systems that need a compact format.

Key benefits

• 50 Ω triaxial contact: double shielding for better signal isolation against interference.
• LEMO push-pull system: fast connection and secure latching that prevents accidental disconnection.
• Collet cable clamping and solder contact: firm retention and reliable assembly.
• Brass and PEEK insulator: robustness and stability from -55 °C to +250 °C.
• POM shell with grip flats: easy handling, even on panels with many connectors.
