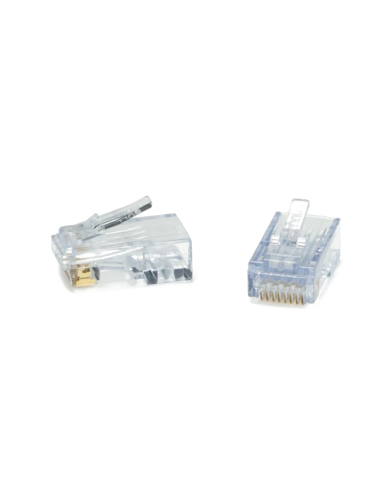

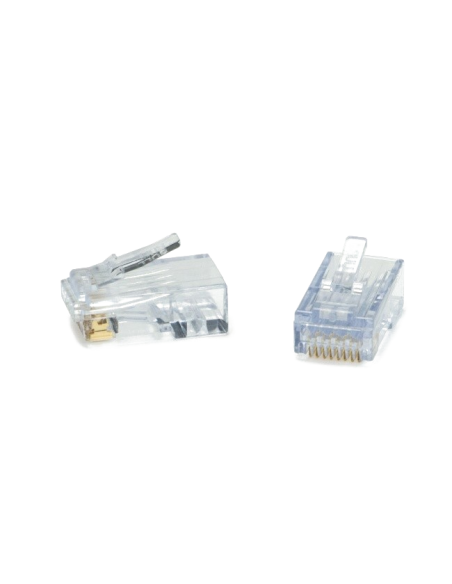

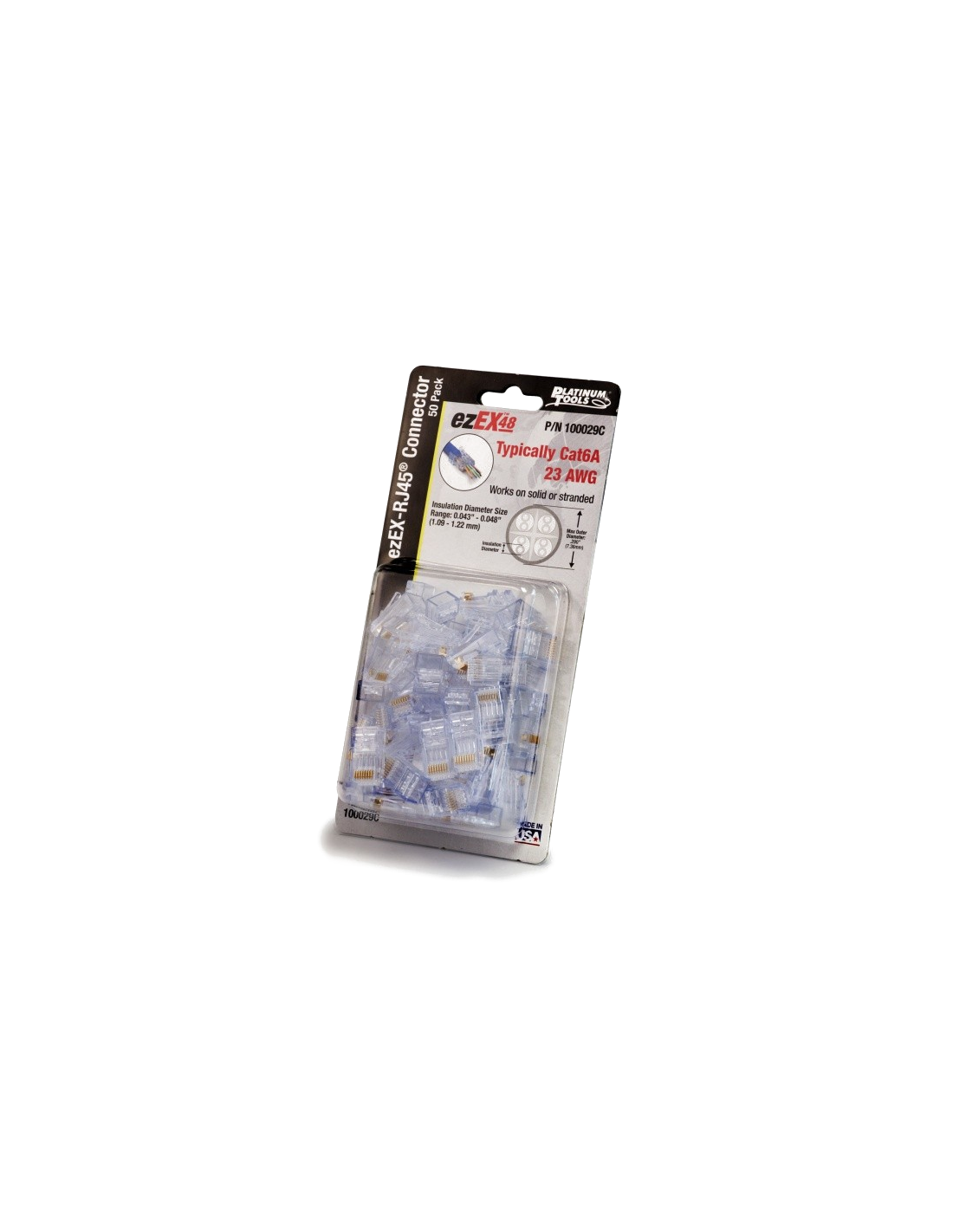

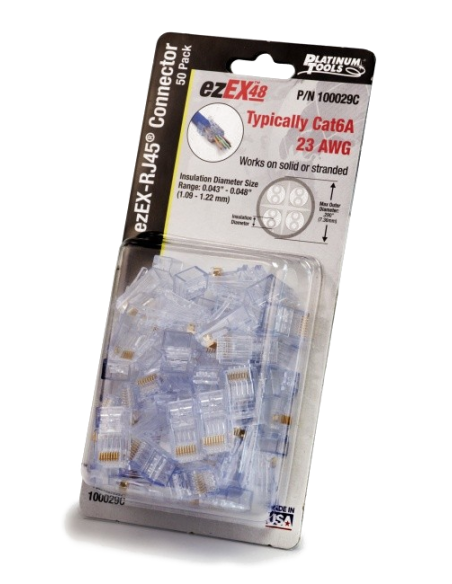

Data Connector Platinum PLT-202048

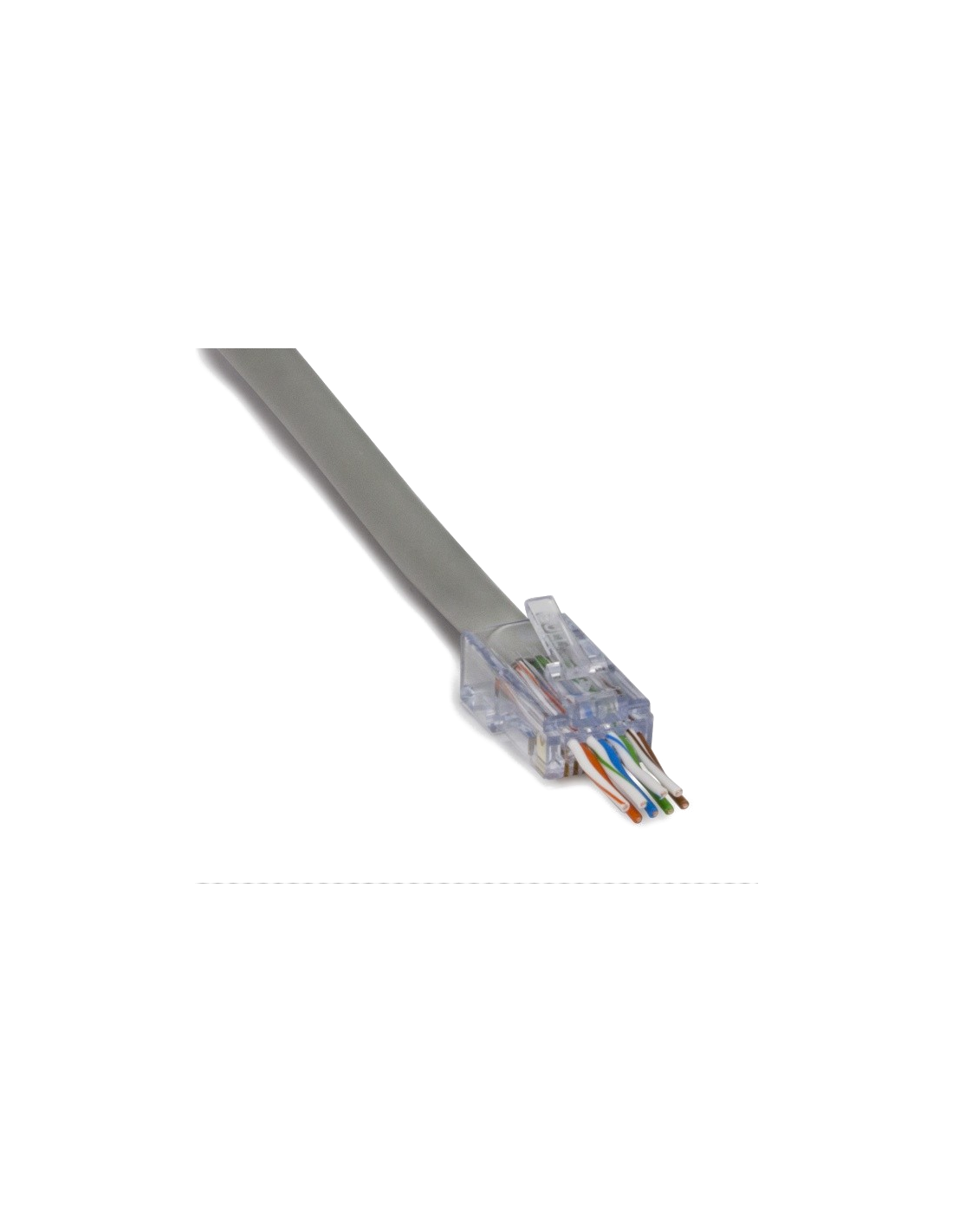

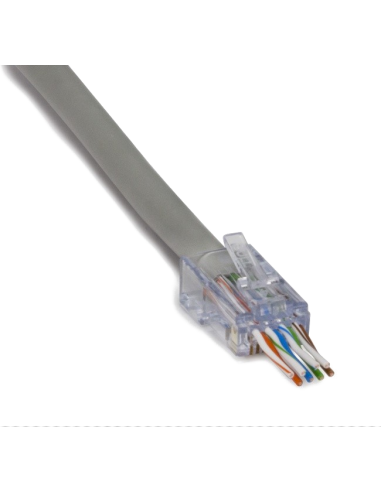

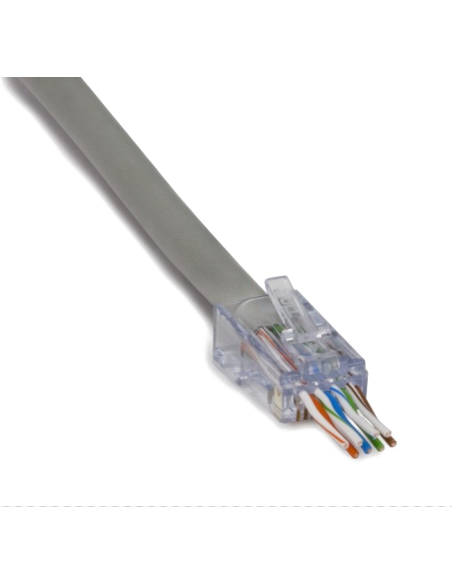

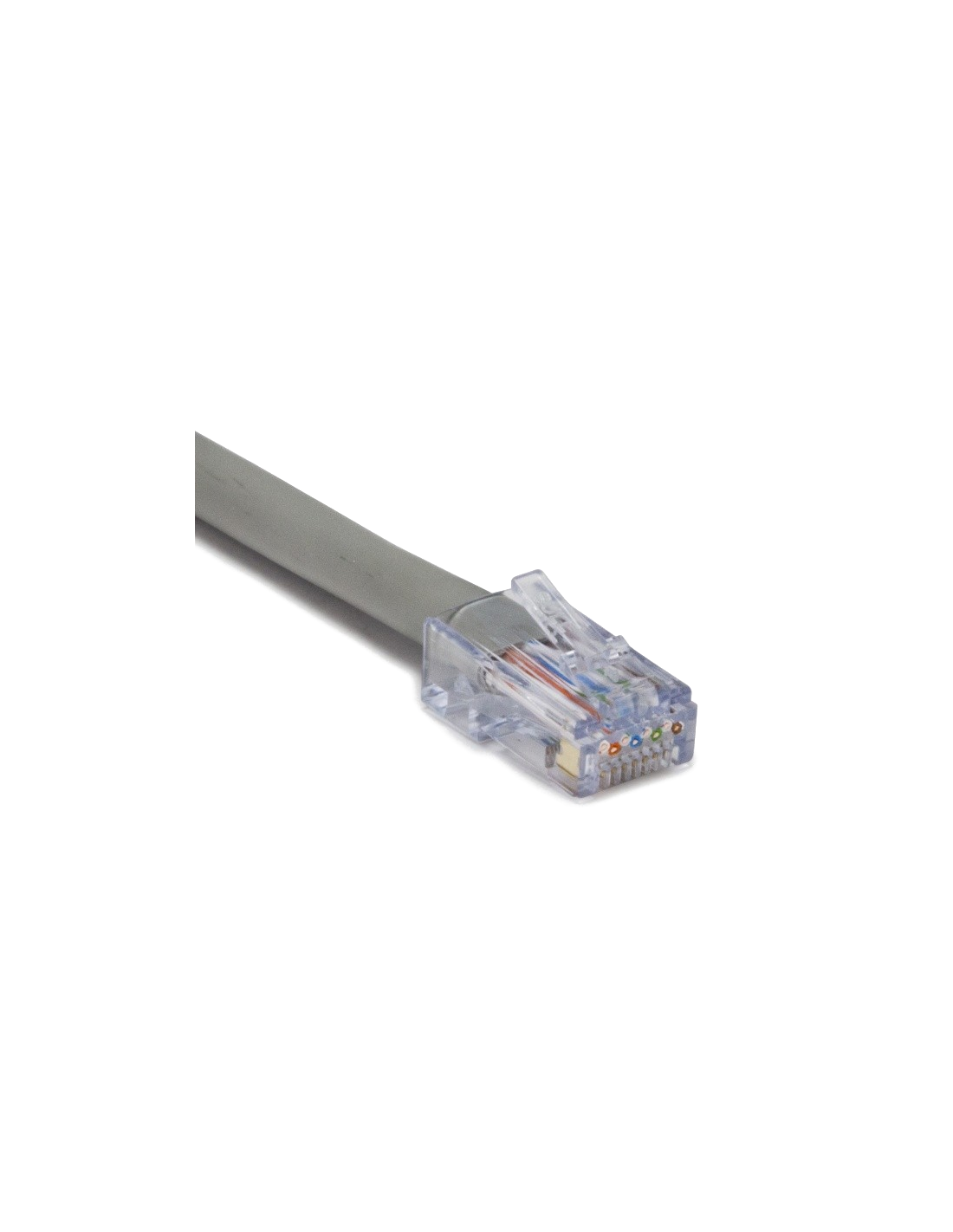

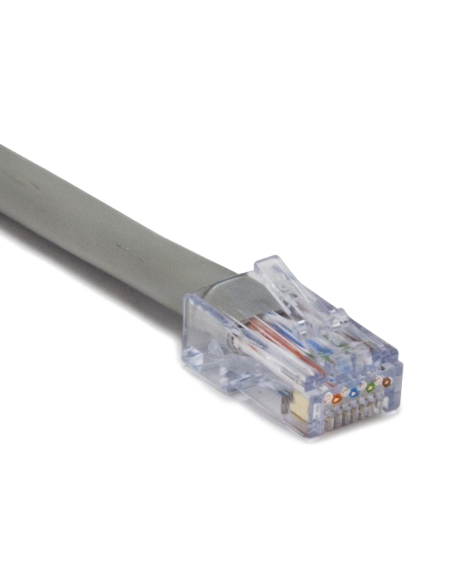

The patented ezEX48 connectors feature a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with Cat6A (Lg. Cat6) cabling and is recommended for PoE/PoE+ and Data applications. The termination tool for these connectors is the EXO Crimp Frame and EXO-EX Die (100061C).

Hi-Lo stagger isolates each conductor for higher performance

Simple one piece/pass through design, no bars or liners

Insulation Diameter (Conductor) Size range: .043” – .048” (1.09 –1.22mm)

Max outer diameter: .290” (7.36mm)

50 micron gold plated contacts

Solid or Stranded 23-22 AWG

TIA, TAA, RoHS, UL & FCC compliant

Typically used with Cat6A & Lg Cat6

Made in the USA

US Patents 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2. Foreign patents.
