RJ NETWORK CONNECTORS
PLT-106180

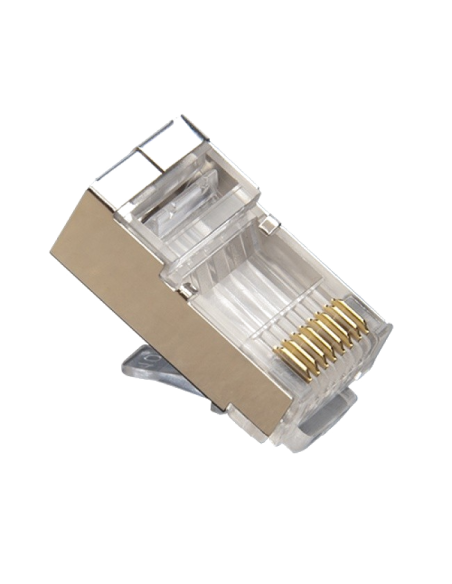

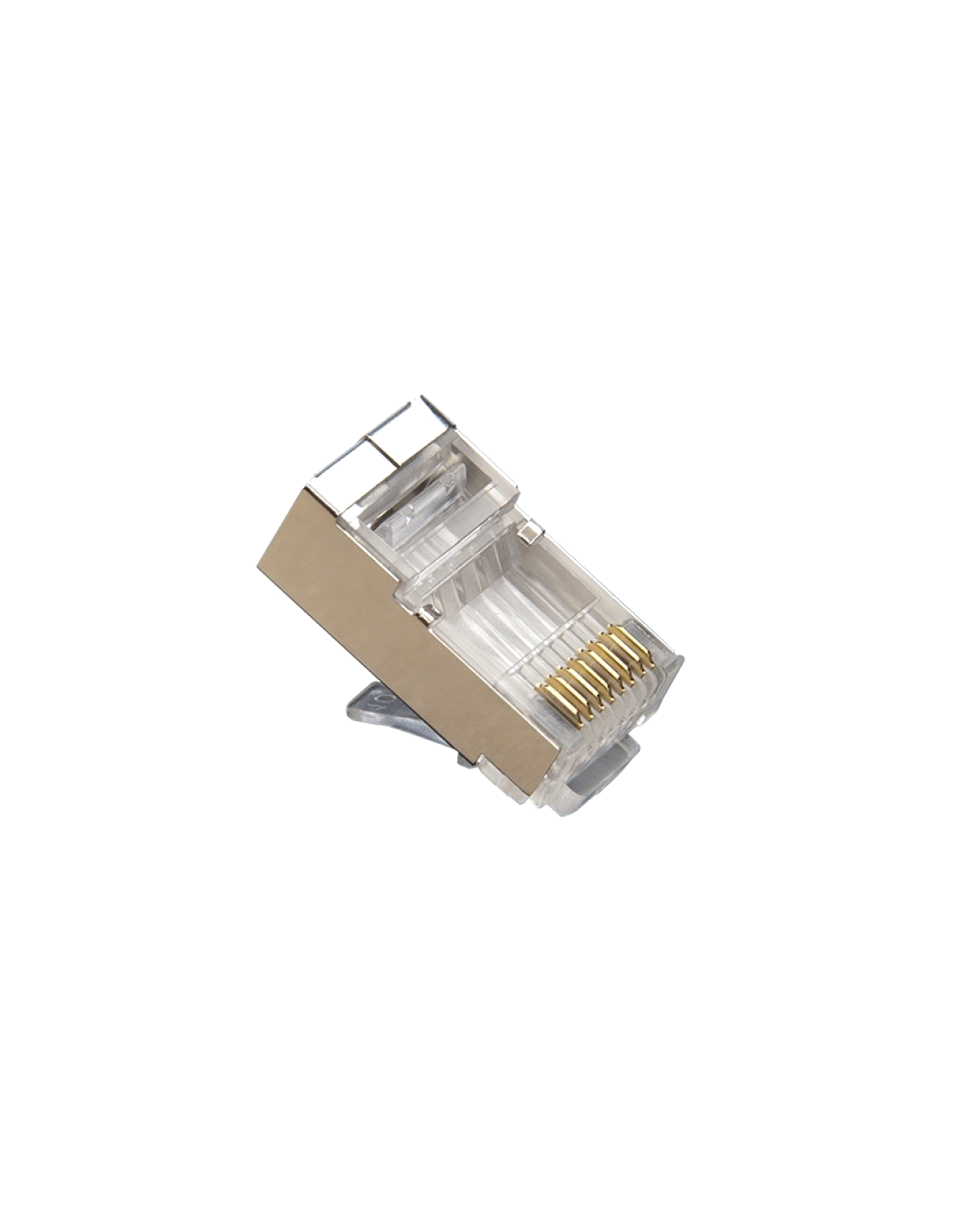

Data Connector Platinum PLT-106180
PLT-106180
Built with a hi-lo stagger design to isolate each conductor at the point of termination making the end result a performance beyond enhanced Cat5e. The internal channels make it a quick & easy prep for termination without using any extra pieces!
Eight conductor shielded internal ground
Conductors with an OD range of 0.034
24 AWG
Insulation Diameter (Conductor) - Size range: 0.034” – 0.039” (0.86 –0.99mm)
3 prong contact for solid conductors only
Max cable jacket OD 0.260" (6.6mm)
RoHS & UL compliant
